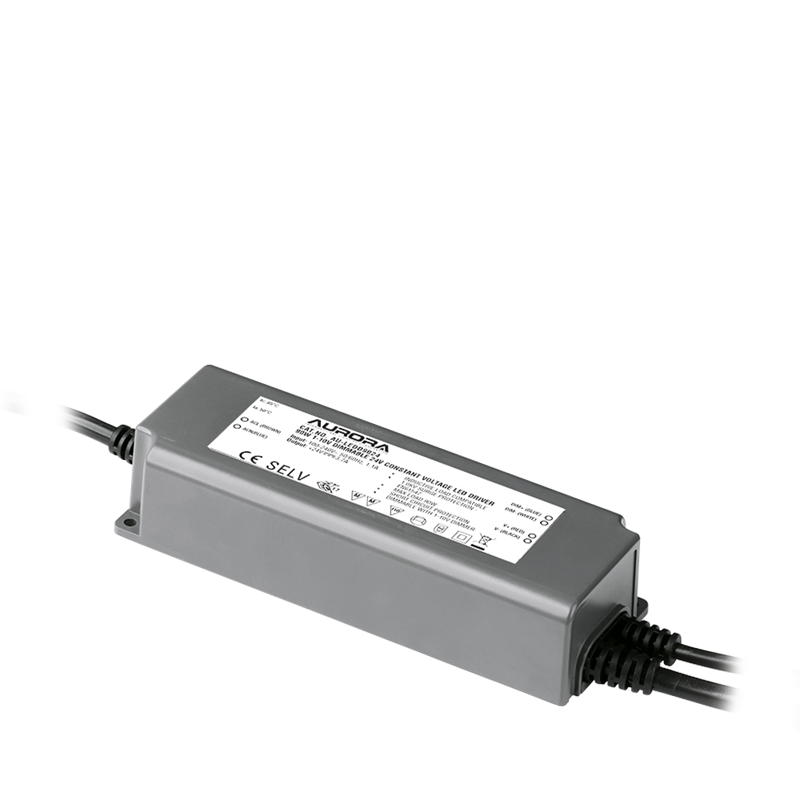

90W IP67 Dimmable 24V Constant Voltage Driver

90W 1-10V Dimmable 24V Constant Voltage LED Driver. IP67. For Constant Voltage LED lamps or luminaires it is necessary to wire the circuit in parallel in order for the voltage to remain constant. Dimmable with a 1-10V Dimmer.

Spec Sheet


  • For Constant Voltage LED lamps or luminaires it is necessary to wire the circuit in parallel in order for the voltage to remain constant
  • Overload, thermal & short-circuit protection
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance - EN 61347
  • EMC compliance - EN 55015, EN 61000, EN 61547
  • IP67 rated
  • 24V DC output, 50/60Hz
  • 3 Year Warranty - see www.auroralighting.com for details
SKU Code Wattage
AU-LEDD9024 90

Positional Adjustment
Fixed
Length (mm)
171
Width (mm)
63
Height (mm)
37.5
IP Rating
IP67
Dimmable
Yes
Input Voltage Type
AC
Input Voltage (Min)
100
Input Voltage (Max)
240
