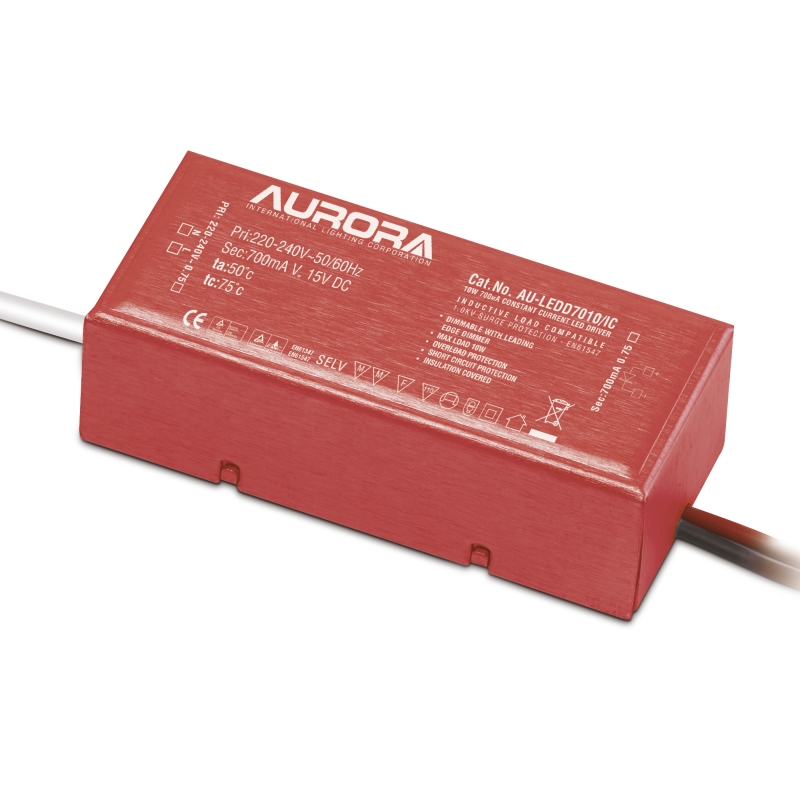

1-10W Dimmable Constant Current Driver

Spec Sheet


  • Dimmable constant current LED driver for use with 700mA LEDs
  • For use with insulation covered fire rated downlights
  • May be covered with thermal insulation material if necessary
  • Dimmable with AU-DSP dimmers (de-rated to 50% loading)
  • 700mA constant current output
  • Suitable for the supply of 1-10W 700mA LEDs
  • Overload protection
  • Short-circuit protection
  • Thermal protection
  • Pre-wired with 30cm primary and secondary leads
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance - EN 61347
  • EMC compliance - EN 55015, EN 61000, EN 61547
  • Series wiring only
  • 3 Year Warranty - see www.auroralighting.com for details

IP Rating
IP20
Length (mm)
89
Width (mm)
40
Height (mm)
28
