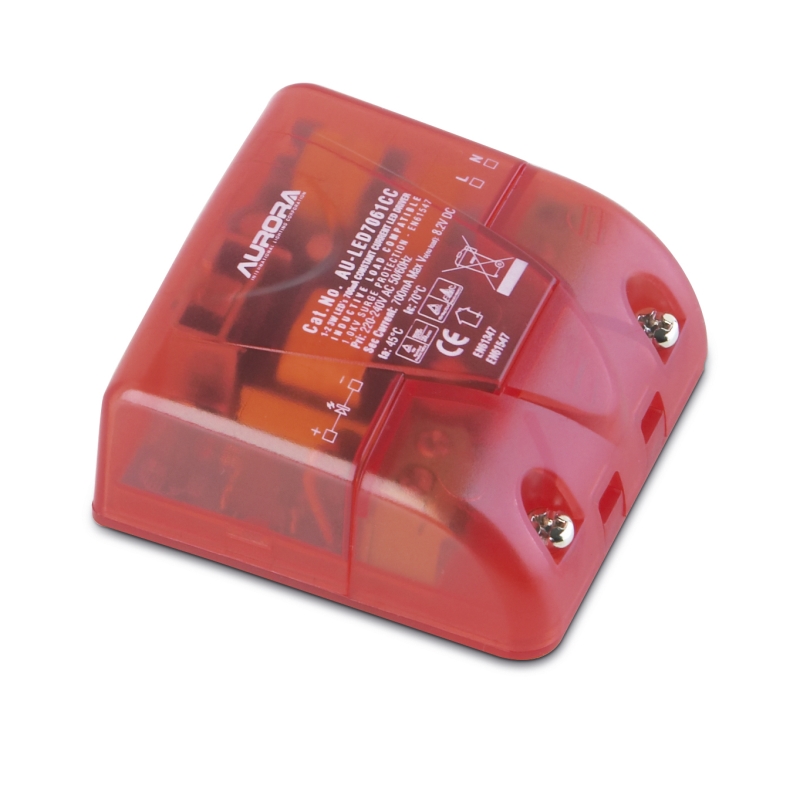

3-6W Constant Current Driver

Spec Sheet


  • Constant current LED driver for use with 700mA 3W LEDs
  • 700mA Constant current output
  • Suitable for the supply of 1-2 3W LED's
  • Overload protection
  • Short-circuit protection
  • Thermal protection
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance - EN 61347
  • EMC compliance - EN 55015, EN 61000, EN 61547
  • Non-dimmable
  • Series wiring only
  • 3 Year guarantee

Length (mm)
50
Width (mm)
50
Height (mm)
20
Input Voltage Type
AC
Input Voltage (Min)
100
Input Voltage (Max)
250
