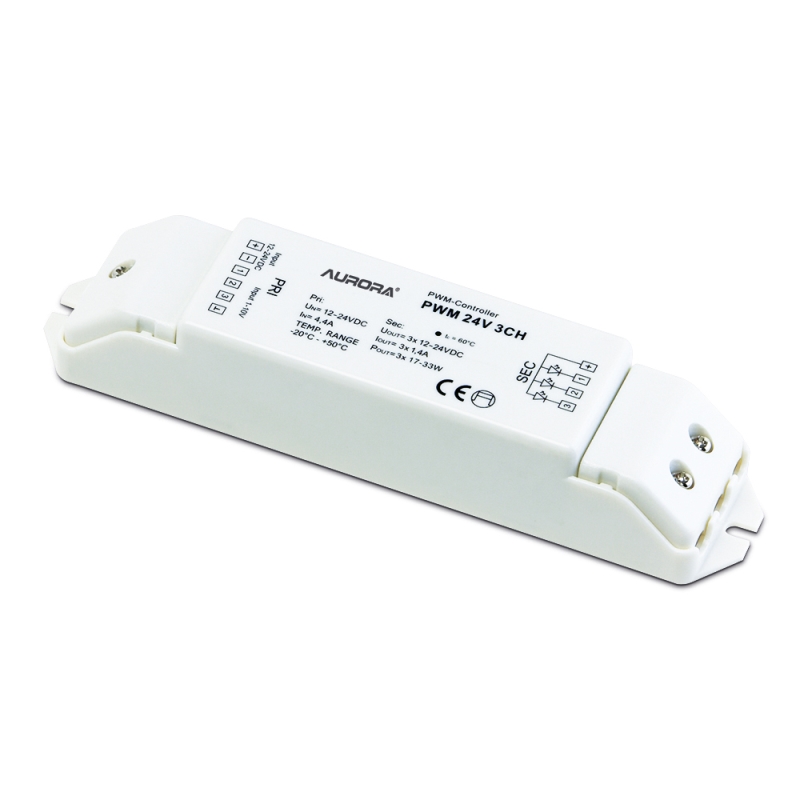

3 Channel Dimmable Control Unit

Spec Sheet


  • Three Channel dimmable LED control unit
  • 3 x 1-10V control inputs (can be tied together to dim all channels with one dimmer - use AU-DSPLED 1-10V dimmer) OR AU-LEDMC1 3 channel RGB Sequencer
  • Three Channel output - RGB
  • 33-Watts per channel
  • Separate 24V DC LED driver required (100W Max.)
  • May be used to dim 24V DC RGB LED strip

Length (mm)
167
Width (mm)
38
Height (mm)
30
Input Voltage Type
DC
Input Voltage (Min)
24
Input Voltage (Max)
24
