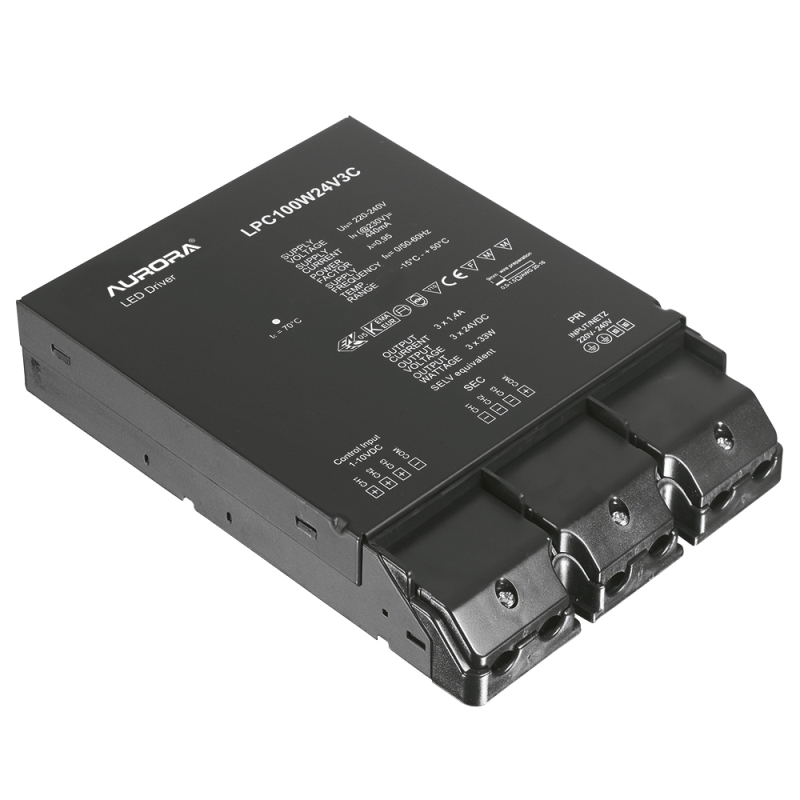

3 x 33W Dimmable Constant Voltage Driver

Spec Sheet


  • Three Channel dimmable LED driver/controller
  • 3 x 1-10V control inputs (can be tied together to dim all channels with one dimmer - use AU-DSPLED 1-10V dimmer) OR AU-LEDMC1 3 channel RGB Sequencer
  • Three Channel output - RGB
  • 33-Watts per channel
  • Built in power supply, separate LED driver NOT required
  • Up to 10 x AU-LED10024CH3 can be linked together to control up to 1000-Watts
  • May be used to dim 24V DC RGB LED strip
  • 3 Year guarantee

Length (mm)
190
Width (mm)
129
Height (mm)
33
Input Voltage Type
AC
Input Voltage (Min)
220
Input Voltage (Max)
250
