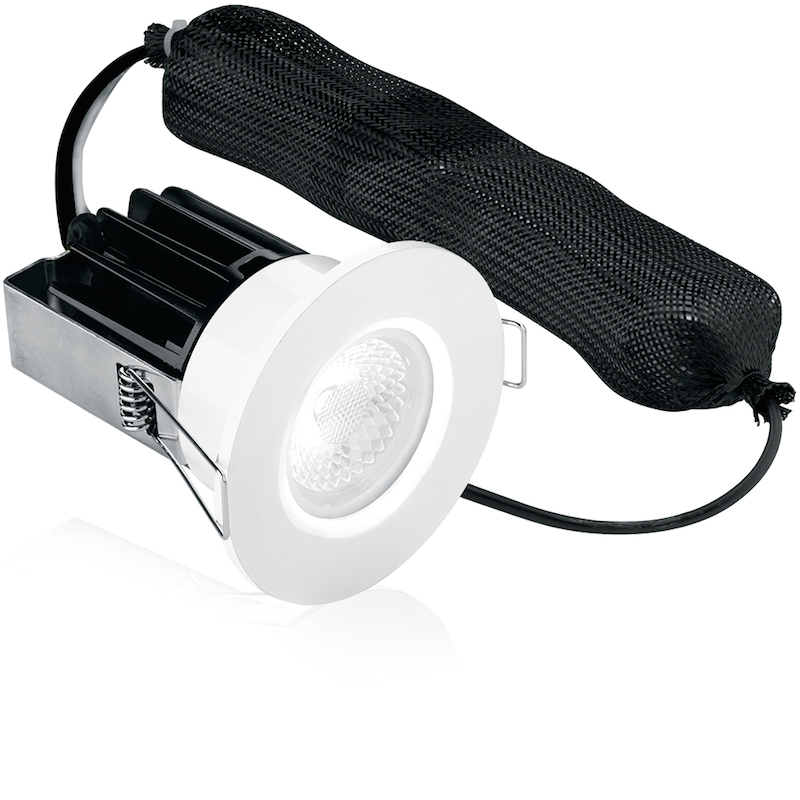

m10™ 10W IP65 Fixed Dimmable Fire Rated Emergency Downlight

Emergency, integrated, fire rated 10W dimmable LED downlight with driver-on-board and high voltage, single source LED chip. Available in 2700K, 3000K and 4000K. Interchangeable bezels available in White, Matt White, Polished Chrome and Satin Nickel. Multiple lens options: 24°, 40° and 60°. 40° fitted as standard. Rated to 30, 60 and 90 minute fire ceilings. Complies with BS EN 1365-2:2000 (fire resistance), BS EN ISO 140-3: 1995 and BS EN ISO 140-6: 1998 (Acoustics), BS EN 13141-1:2400 (Air leakage). 5 year extended warranty - register at auroralighting.com/warranty

Spec Sheet


  • Rated to 30, 60 & 90 minute fire ceilings
  • icDOB™ (Driver on Board) for maximum reliability and lifetime - NO SEPARATE DRIVER REQUIRED
  • Crystalcool™ next generation thermal management offers brighter light for longer
  • Mains voltage single source HVLED™ chip eliminates overshadowing and offers controlled dimming
  • Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
  • 3 hour emergency backup duration
  • Maintained operation - can be switched on and off normally and continues to operate if the mains supply fails
  • Green LED charge indicator incorporated into the LEDchroic lens
  • Ballast lumen factor 0.2
  • 40° lens supplied, interchangeable 24 & 60 lenses sold separately
  • ErP compliant - High colour rendering index (Ra) >80
  • FastFix™rapid install system - connector included
  • Twist&Lock™ IP65 Interchangeable bezels - sold separately
  • BS EN 1365-2:2000 (Fire resistance)
  • BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics)
  • BS EN 13141-1:2004 (Air leakage)
  • (L70) at a 40,000 hour lifetime
  • 5 Year Warranty (not including battery pack) – see www.auroralighting.com for details

Positional Adjustment
Fixed
Length (mm)
95
Height (mm)
95
Recess Depth (mm)
95
Overall Diameter (mm)
88
Cutout Diameter Min. (mm)
65
Cutout Diameter Max. (mm)
72
IP Rating
IP65
Dimmable
Yes
Input Voltage Type
AC
Input Voltage (Min)
220
Input Voltage (Max)
240
Lifetime (Hours)
40000

Download

Instruction Leaflet
