Rotary Dimmers
Spec Sheet

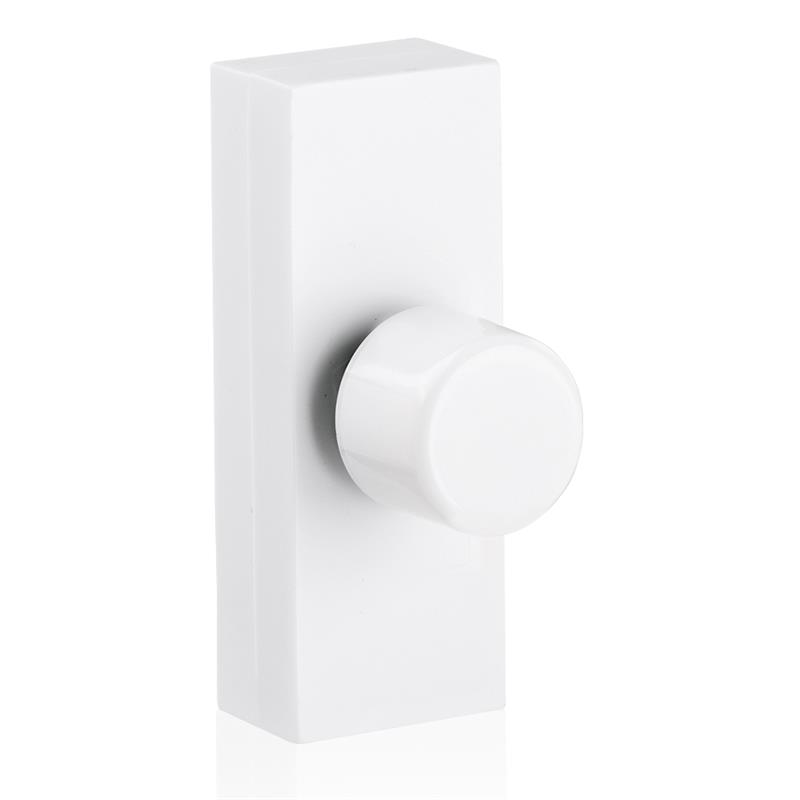

2-200W Universal Intelligent Dimmer



2-200W Universal intelligent dimmer

Features & Benefits
Resettable thermal switch
Short-circuit protection
Module case ultrasonically sealed to reduce dimmer buzzing
Smooth dimming operation from 0-100% light output
Smaller than standard dimmer as no choke or transistors
May be fitted to most dimmer plates
Intelligent universal dimmer modules that automatically detect if the load is leading or trailing edge and adjusts to suit
Suitable for controlling any capacitive, inductive or resistive dimmable load such as LED, halogen, CFL, fans
Integrated trimming potentiometer allows CFL and LED lamps to be set at a minimum level to prevent lamps flickering or extinguishing & maintain lamp life
Minimum load 2W, so suitable for small LED loads
One or two way switching
Electrical Safety - BS EN 60669-2-1:2004+A12:2010
EMC compliance - BS EN 55015:2006+A2:2009
De-rating for LED - 2/3 of load x load PF = max load on dimmer
De-rating for CFL - 1/3 of load x load PF = max load on dimmer
No de-rating for halogen loads
Read More
Technical Information
Length (mm)
66
Width (mm)
25
Height (mm)
16
  • TUV - EMC
    TUV - EMC
  • TUV - Safety
    TUV - Safety
  • CE
    CE
  • 240V
    240V
  • Dimmable
    Dimmable
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
