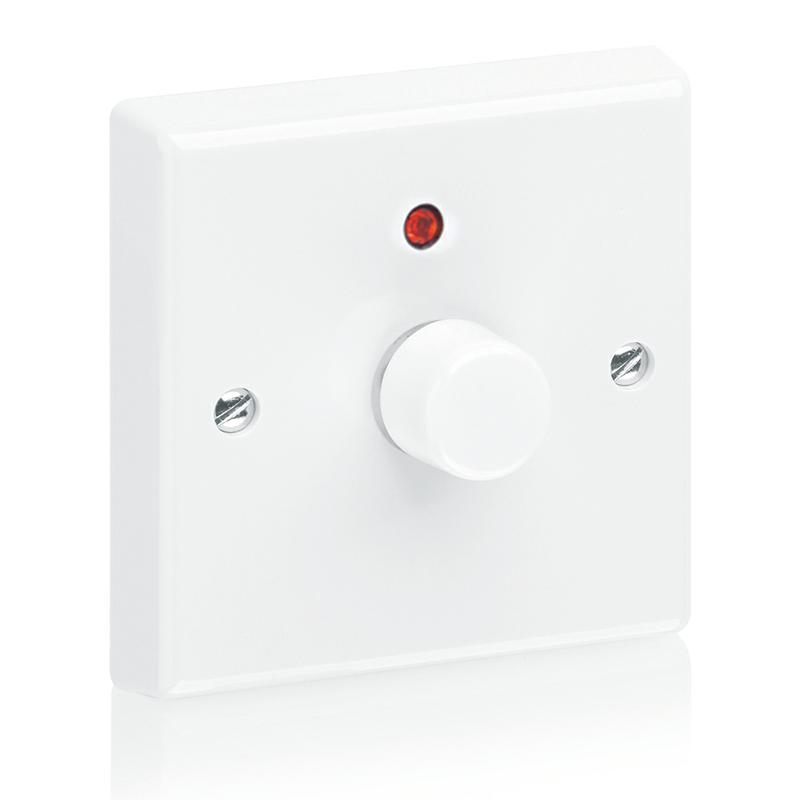

1 Gang 2 Way Rotary Dimmer

Spec Sheet

  • Suitable for control of dimmable electronic transformers, toroidal transformers and tungsten lamps WITHOUT de-rating
  • Not suitable for use with fluorescent lamps
  • Leading edge phase control
  • For use with resistive and inductive loads
  • Integrated over-temperature protection fuse
  • Module case ultrasonically sealed to reduce dimmer buzzing
  • Smooth dimming operation from 0-100% light output
  • Fits a plaster depth (16mm) mounting box AU-DSP401. Use a 25mm deep (minimum) mounting box for AU-DSP402, 35mm for AU-DSP651/801 & 45mm for AU-DSP1001
  • One or two way switching
  • Complies with the latest Electrical Safety standard for dimmer switches EN 60669-2-1:2000
  • EMC compliance - EN 55015
  • 1 Year guarantee
  • This product available in white finish only
