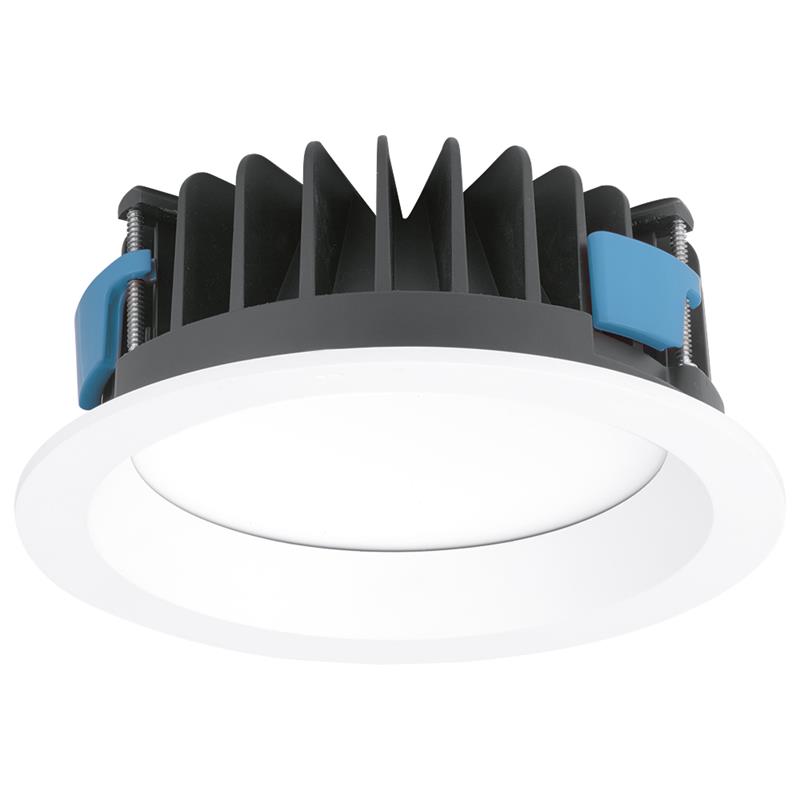

Modi™ 35W Dimmable Downlight

Fixed, dimmable 35W IP20 LED downlight. Die-cast aluminium with frosted polycarbonate diffuser, designed to replace traditional PL downlights. Driver options include Mains, Dali and 1-10V dimmable drivers (sold separately). Suitable for cut-out of 200mm. Emergency and Baffled versions available. Interchangeable bezels available in round, square and drop glass options. 3 year warranty.

Spec Sheet


  • Range of energy efficient LED downlights
  • Accessories include drop glass, round and square bezels
  • Multiple driver options available including Mains, Dali and 1-10V
  • Ideal for corridors, circulation areas and reception areas
  • 3 year warranty

Positional Adjustment
Fixed
Height (mm)
83
Recess Depth (mm)
83
Overall Diameter (mm)
225
Cutout Diameter Min. (mm)
200
Cutout Diameter Max. (mm)
200
IP Rating
IP20
Dimmable
Yes
Input Voltage Type
AC
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
Lifetime (Hours)
35000
