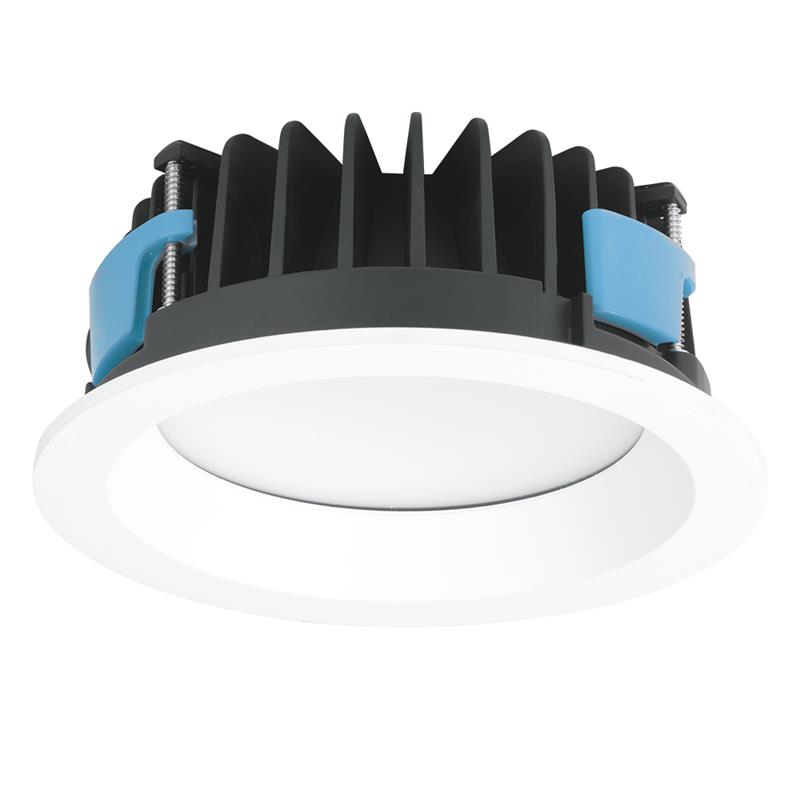

Modi™ 19W Dimmable Downlight



Fixed, dimmable 19W IP20 LED downlight. Die-cast aluminium with frosted polycarbonate diffuser and 90° beam angle, designed to replace traditional PL downlights. Driver options include Triac, DALI and 1-10V dimmable drivers (sold separately). Suitable for cut-out of 170mm. Interchangeable bezels available in round, square and drop glass options. 3 year warranty.

Downloads
Features & Benefits
Range of energy efficient LED downlights
Accessories include drop glass, round and square bezzels
Multiple driver options available including Mains, Dali and 1-10V
Ideal for corridors, circulation areas and reception areas
3 year warranty
Read More
Technical Information
Lifetime (Hours)
35000
Power Factor
0.9
IP Rating
IP20
Overall Diameter (mm)
190
Height (mm)
73
Recess Depth (mm)
73
Cutout Diameter Min. (mm)
170
  • Non-Replaceable LED
    Non-Replaceable LED
  • ErP Compliant
    ErP Compliant
  • LED Light Source
    LED Light Source
  • CE
    CE
  • RoHS
    RoHS
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • 240V
    240V
  • Dimmable
    Dimmable
