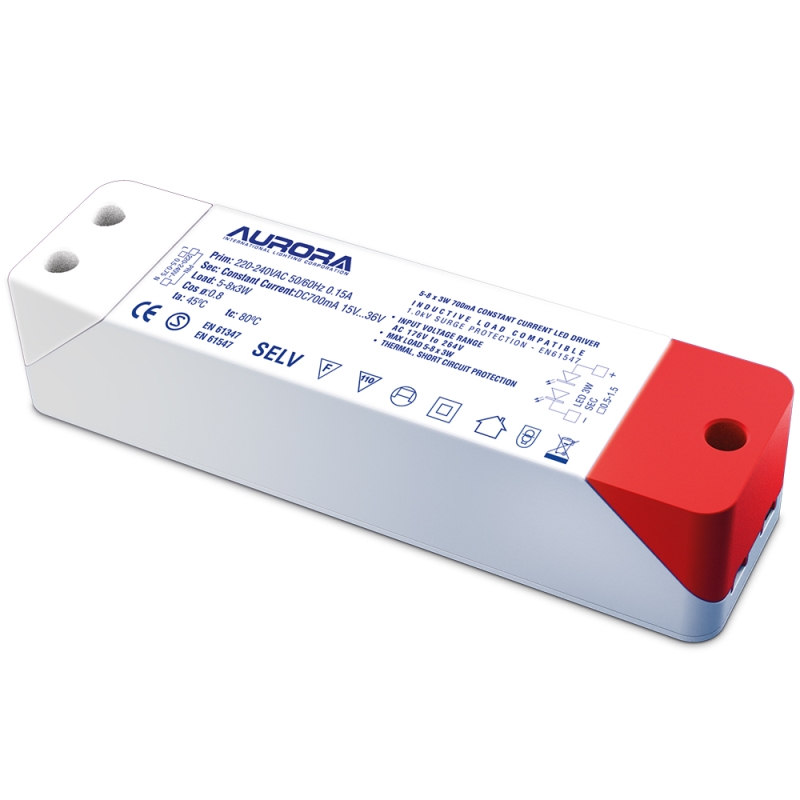

20W Non-Dimmable Constant Current Driver

20W 700mA Non-Dimmable Constant Current LED Driver. For Constant Current LED lamps or luminaires it is necessary to wire the circuit in series in order for the current to remain constant. Suitable for the supply of 20W LEDs. Overload protection, thermal & short-circuit protection. 1.0kV SURGE PROTECTION – EN 61547. Safety compliance - EN 61347. EMC compliance - EN 55015, EN 61000, EN 61547. Non-dimmable. 3 year warranty.

Spec Sheet


  • Constant current LED driver for use with 700mA LEDs
  • Suitable for the supply of 20W LEDs
  • For Constant Current LED lamps or luminaires it is necessary to wire the circuit in series in order for the current to remain constant
  • Overload protection, thermal & short-circuit protection
  • Loop-in, loop-out primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance - EN 61347
  • EMC compliance - EN 55015, EN 61000, EN 61547
  • Non-dimmable
  • Series wiring only
  • 3 Year Warranty - see www.auroralighting.com for details

Length (mm)
185
Width (mm)
39
Height (mm)
32
Input Voltage Type
AC
Input Voltage (Min)
100
Input Voltage (Max)
240
