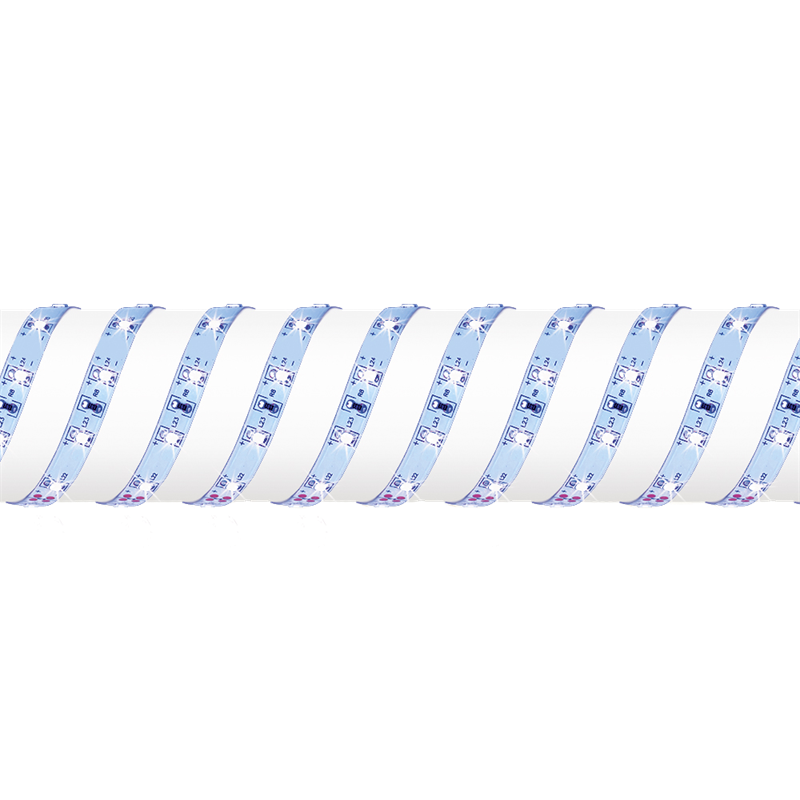

Tira de LED flexible de un solo color: 12 VCC

LEDline™ PRO single colour LED strip is ideal for both commercial and residential indoor applications such displays and pelmets. Low power consumption of 4.8W per metre. Strip can be cut to length and 2m leads soldered to special order.

Hoja de especificaciones


  • Single colour flexible LED strip with 3M™ self adhesive backing
  • Beam angle of 120° and 17mm between LEDs, 60 LEDs per metre
  • Cut points every 50mm for maximum flexibility
  • Voltage drop of 4V per 10m and maximum run of 10m
  • For runs over 10m individual lengths should be connected in parallel
  • Requires 12V LED driver (sold separately)
  • Reel length 30m
  • 3 year warranty
Código SKU Potencia Lúmenes Temperatura De Color (k) Índice Crómatico Ángulo Del Haz Descargar
EN-ST100/30 4.8 480 3000 80 120
EN-ST100/40 4.8 515 4000 80 120
EN-ST100/60 4.8 540 6300 80 120
EN-ST100/BLU 4.8 80 120

EN-CH100 Surface Profile
EN-CH100EC1 Channel End Cap
EN-CH100EC2 Cable Entry Channel End Cap
EN-CH101 Surface Profile
EN-CH101EC1 Channel End Cap
EN-CH101EC2 Cable Entry Channel End Cap
EN-CH102 Recessed Profile
EN-CH102EC1 Channel End Cap
EN-CH102EC2 Cable Entry Channel End Cap
EN-CH103 Recessed Profile
EN-CH103EC1 Channel End Cap
EN-CH103EC2 Cable Entry Channel End Cap
EN-CH104 Corner Profile
EN-CH104EC1 Channel End Cap
EN-CH104EC2 Cable Entry Channel End Cap
EN-CH105 Deep Profile
EN-CH105EC1 Channel End Cap
EN-CH105EC2 Cable Entry Channel End Cap
EN-CHC1 Channel Mounting Clip
EN-CHC2 Channel Mounting Clip
EN-CHPC1CL Clear Diffuser Cover
EN-CHPC1FR Frosted Diffuser Cover
EN-CHPC2FR Frosted Diffuser Cover
EN-ST100A Conector para tira de LED de un solo color
EN-ST100B Conector con cable para tira de LED de un solo color
EN-ST100C Cable flexible de interconexión para tira de LED de un solo color
Width (mm)
8
Voltaje De Entrada (mín.)
12
Voltaje De Entrada (máx.)
12
Tipo De Voltaje De Entrada
DC
Clasificación De La Ip
IP20
Altura (mm)
2
Vida Útil (horas)
35000
Regulable
Yes
Orientación
Fijo

Download

Folleto de instrucciones
