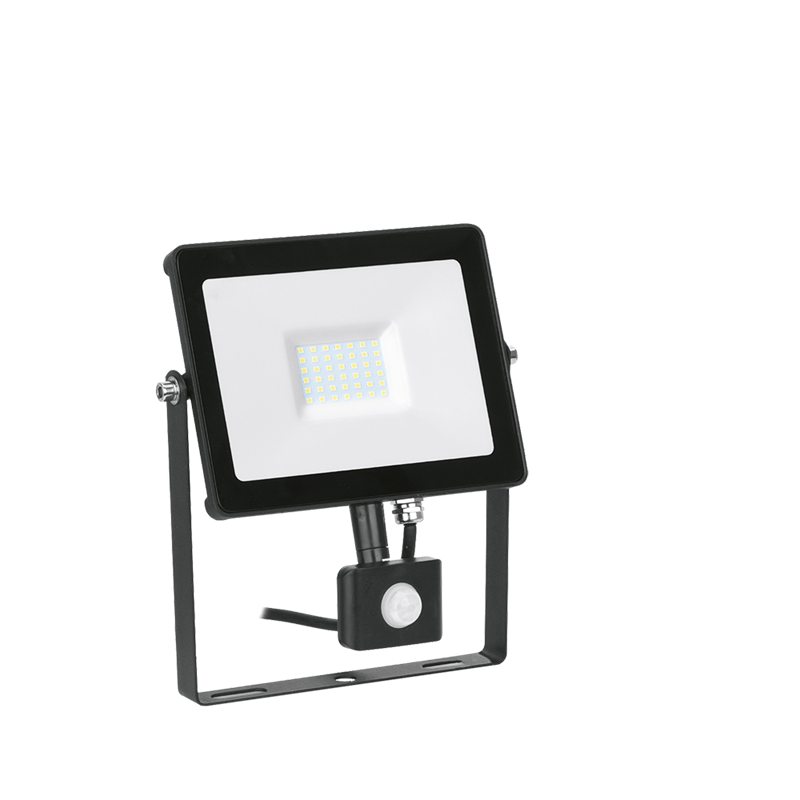

QuaZarPIR™ 30W Adjustable IP65 Driverless LED Floodlight

New to the QuaZar™ floodlight range is the QuaZarPIR™. Maintaining the popular slim design, the inclusion of a PIR incorporates the function of motion detection, without compromising the product’s popular appearance. The PIR has been specially designed to help reduce false triggering; both the position and functions can be fully adjusted to suit any application. Ideal for both domestic and commercial applications, the QuaZarPIR™ is perfect for security lighting as well as helping to reduce energy costs.

Hoja de especificaciones


  • IP65 rated LED floodlight with ultra slim design and adjustable PIR sensor
  • PIR detection distance up to 10m and detection range of 120°
  • PIR mode selector dials to adjust daylight, time and sensitivity
  • Available in black and white finish housing
  • Pre-wired with 800mm of cable
  • 1.5kV surge protection
  • 3 year warranty
Código SKU Potencia Lúmenes Temperatura De Color (k) Índice Crómatico Ángulo Del Haz Descargar
EN-FLH30PBLK/40 30 2700 4000 70 120
EN-FLH30PW/40 30 2700 4000 70 120

Width (mm)
200
Bracket Length (mm)
190
Bracket Width (mm)
201
Depth (mm)
24
Voltaje De Entrada (mín.)
180
Voltaje De Entrada (máx.)
265
Factor De Potencia
0.9
Tipo De Voltaje De Entrada
AC
Clasificación De La Ip
IP65
Altura (mm)
155
Vida Útil (horas)
25000
Regulable
No
Orientación
Orientable

Download

Folleto de instrucciones
