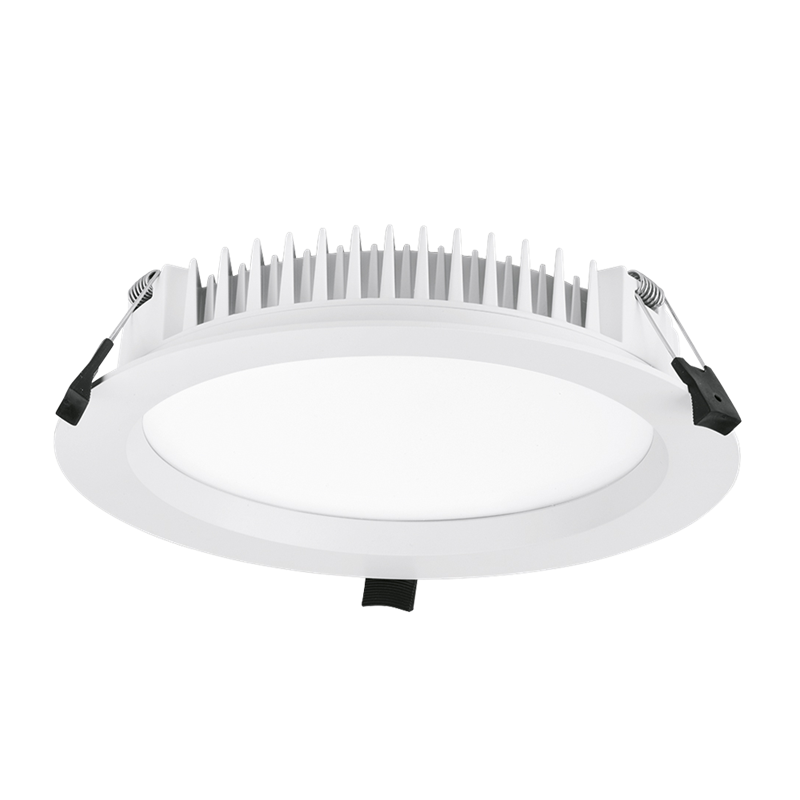

Lumi-Fit™ 13W High Performance Dimmable LED Downlight

The new range of dimmable Lumi-Fit commercial downlights deliver up to an impressive 100lm/W. Supplied with remote driver and fitted with an acrylic diffuser to reduce glare and for even light distribution. With multiple wattages and sizes on offer this range meets the needs for countless new commercial applications or an upgrade for compact fluorescent fittings in existing applications.

Hoja de especificaciones


  • Low cost energy saving alternative to compact fluorescent fittings
  • Life not affected by frequent switching e.g. when used with occupancy controls
  • Plug and play remote driver for easy installation
  • DALI plug and play driver available to order
  • IP54 rated - suitable for use in commercial offices, educational, council buildings and public toilets
  • 1.5kV surge protection
  • 3 year warranty
Código SKU Potencia Lúmenes Temperatura De Color (k) Índice Crómatico Ángulo Del Haz Descargar
EN-DDLH835/30 35 3100 3000 80 100
IES
EN-DDLH835/40 35 3600 4000 80 100

Voltaje De Entrada (mín.)
200
Voltaje De Entrada (máx.)
240
Factor De Potencia
0.9
Tipo De Voltaje De Entrada
AC
Clasificación De La Ip
IP54
Diámetro De Corte Mín. (mm)
200
Tamaño De Corte (mm)
210
Profundidad De Empotramiento(mm)
70
Altura (mm)
45
Vida Útil (horas)
40000
Regulable
Yes
Orientación
Deflector
Diámetro Total (mm)
228

Download

Folleto de instrucciones
