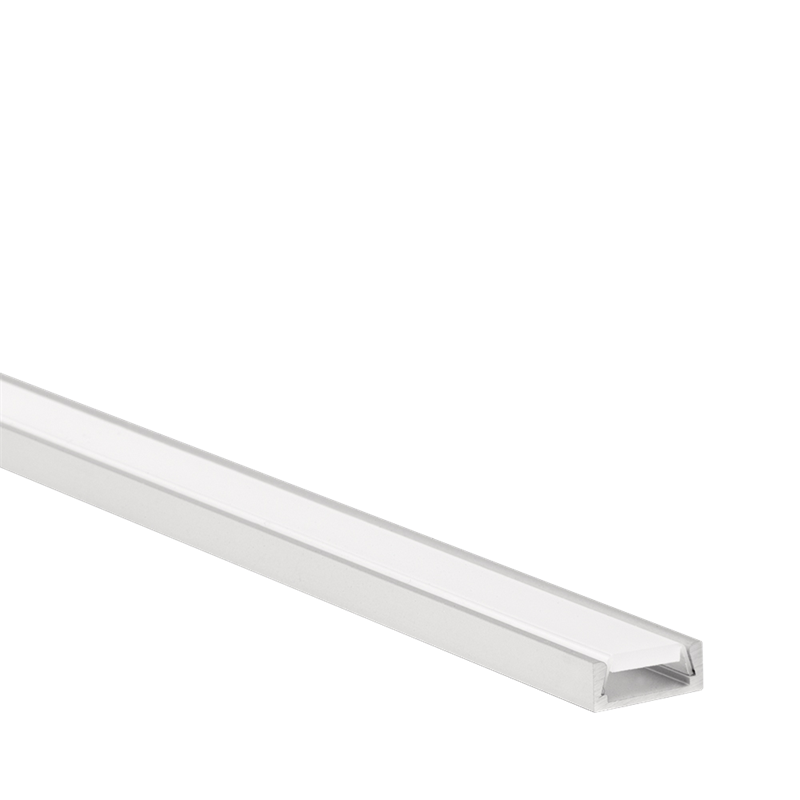

Surface Profile

Aluminium channel offers a choice of recessed, surface and corner mount options. With limitless application, the channel is ideal for use with the Enlite LED strip for living rooms, cove lighting or under counter tops.

Hoja de especificaciones


  • Aluminium profiles for mounting flexible or solid LED strips up to 10.8 mm wide
  • 1m and 2m standard lengths - add suffix 1 for 1m or 2 for 2m
  • Available with clear or frosted diffuser covers (sold separately)
  • With or without cable entry end caps (sold separately)
  • Aluminium finish; anodised aluminium finish for EN-CH102 and EN-CH103
  • LEDline and LEDline Pro strip has adhesive backing to fix it in the profile
Código SKU
EN-CH1001
EN-CH1002

EN-CH100EC1 Channel End Cap
EN-CH100EC2 Cable Entry Channel End Cap
EN-CHC1 Channel Mounting Clip
EN-CHPC1CL Clear Diffuser Cover
EN-CHPC1FR Frosted Diffuser Cover
Width (mm)
15
Clasificación de la IP
ninguno
Altura (mm)
6
Regulable
No
Orientación
Fijo
