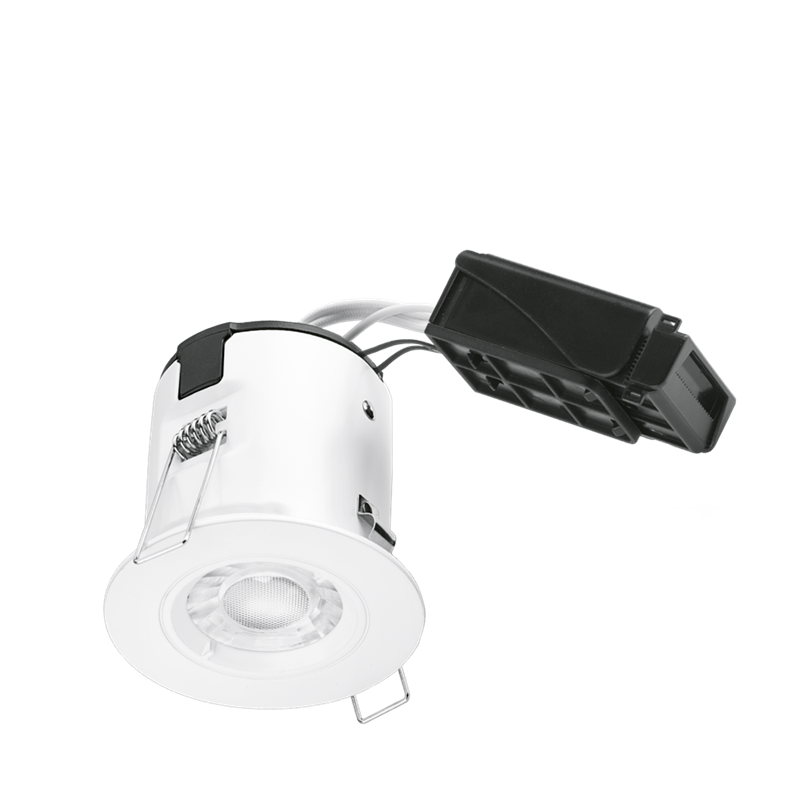

Isopro Fixed IP65 5W GU10 Coverable Recessed Downlight Pack

The Isopro range is designed to ensure a perfect airtightness of the ceilings in all environments and whatever the constraints. Thanks to its standard diameter flush-mounting can, the Isopro can be installed in place of conventional downlights and can be easily connected. Available with an ICE™ 5W LED lamp for maximum energy savings.

Hoja de especificaciones


  • Recessed airtight LED downlight - Building regulation compliant
  • Suitable for all types of insulation materials (fibre / blown / sprayed) and vapour barrier tarpaulin
  • IP65 cast aluminium lock ring bezel - easy access to the lamp
  • Supplied with a quick-release and plug-in terminals connector
  • Low installation depth thanks to its flexible bracket
  • 30, 60 & 90min fire resistant in fireproof ceilings
  • Supplied with 5W ICE™ GU10 lamp
  • White & satin nickel finish options
  • 2 year warranty
Código SKU Potencia Lúmenes Temperatura de color (K) Índice crómatico Beam Angle
EN-AL110SN/30 5 500 3000 80 60
EN-AL110SN/40 5 520 4000 80 60
EN-AL110W/30 5 500 3000 80 60
EN-AL110W/40 5 520 4000 80 60

Voltaje de entrada (mín.)
220
Voltaje de entrada (máx.)
240
Factor de potencia
0.5
Tipo de voltaje de entrada
AC
Clasificación de la IP
IP65
Diámetro de corte mín. (Mm)
75
TAMAÑO DE CORTE (mm)
75
Profundidad de empotramiento(mm)
100
Vida útil (horas)
25000
Regulable
No
Orientación
Fijo
Diámetro total (mm)
90

Download

Folleto de instrucciones
