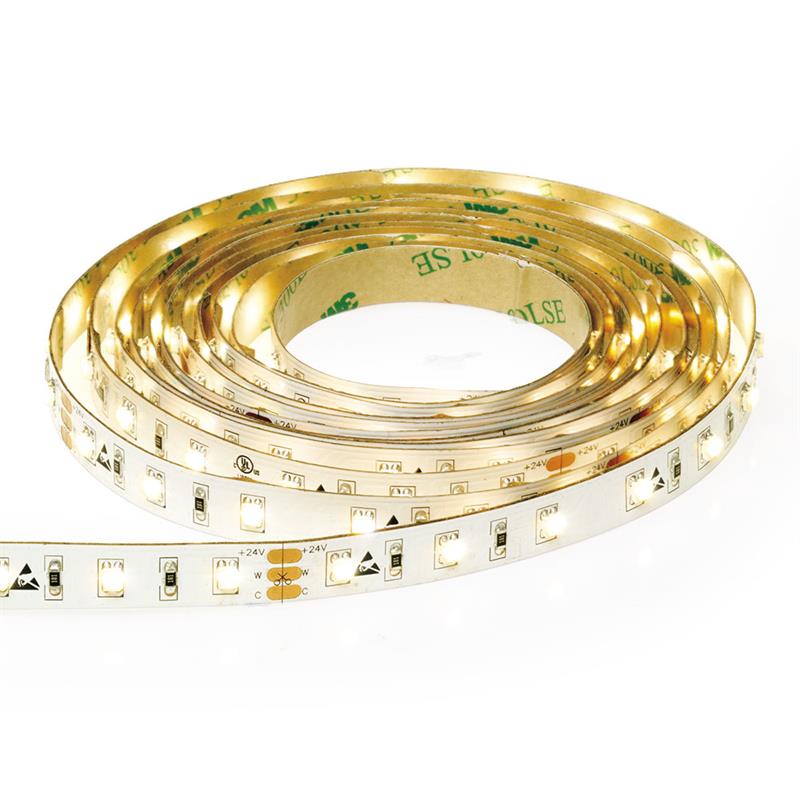

9.6W CRI90 CX Strip



24V DC CRI90 Colour Xchange LED strip with self-adhesive backing (must be applied to clean surfaces). Suitable for a number of applications where ambiance needs to be created and quality of light is important. With a beam angle of 120° and both LEDs per light point, individual light points are less visible creating a continuous glow. This strip has cut points every 100mm for maximum flexibility what length is concerned. Maximum run of 10m, any length over 10m must be run in parallel. Low power consumption of 9.6W per metre. Strip can be cut to length and 2m leads soldered to special order. A 24V DC Constant Voltage LED driver is required (see driver options table). Reel Length 30m. 3 year warranty.

Código SKU Potencia Lúmenes Ángulo Del Haz
AU-ST90CX 9.6 450 120
Código SKU Descripción
AU-ST93A CX Strip Connector
AU-ST93B CX Wired Strip Connector
AU-ST93C CX Inter-Connection Strip Connector
Código SKU Descripción
SKU Code Description Metros por Driver
AU-LED1624CV Driver de tensión constante no regulable para LED: 24 VCC, 1 - 16 W 1 Metre Per Driver
AU-LED2524CV Driver de tensión constante no regulable para LED: 24 VCC, 1 - 25 W 2 Metres Per Driver
AU-LED5024CV Driver de tensión constante no regulable para LED: 24 VCC, 1 - 50 W 5 Metres Per Driver
AU-LEDD9024 Driver de corriente constante regulable de 24V para LED, regulable, 75 W, 1-10 V 9 Metres Per Driver
AU-ELG-100-24 100W IP67 Non-Dimmable 24V Constant Voltage Driver 10 Metres Per Driver
Características y beneficios
Single colour flexible LED strip with self adhesive backing (must be applied to clean surfaces)
Cut points every 100mm
17mm between LEDs
Beam angle 120º
Maximum length of run 10m
For runs over 10m individual lengths should be connected in parallel
Requires 24V DC Constant Voltage LED driver
Very low power consumption - 9.6W per metre
Please order to the nearest metre. (Reel length 30m)
3 Year Warranty - see www.auroralighting.com for details
Read More
Información técnica
Vida Útil (horas)
30000
Clasificación De La Ip
IP20
Width (mm)
10
Altura (mm)
2
  • Marca MM
    Marca MM
  • Fuente de luz LED
    Fuente de luz LED
  • CE
    CE
  • Paralelo
    Paralelo
  • Clase 3
    Clase 3
