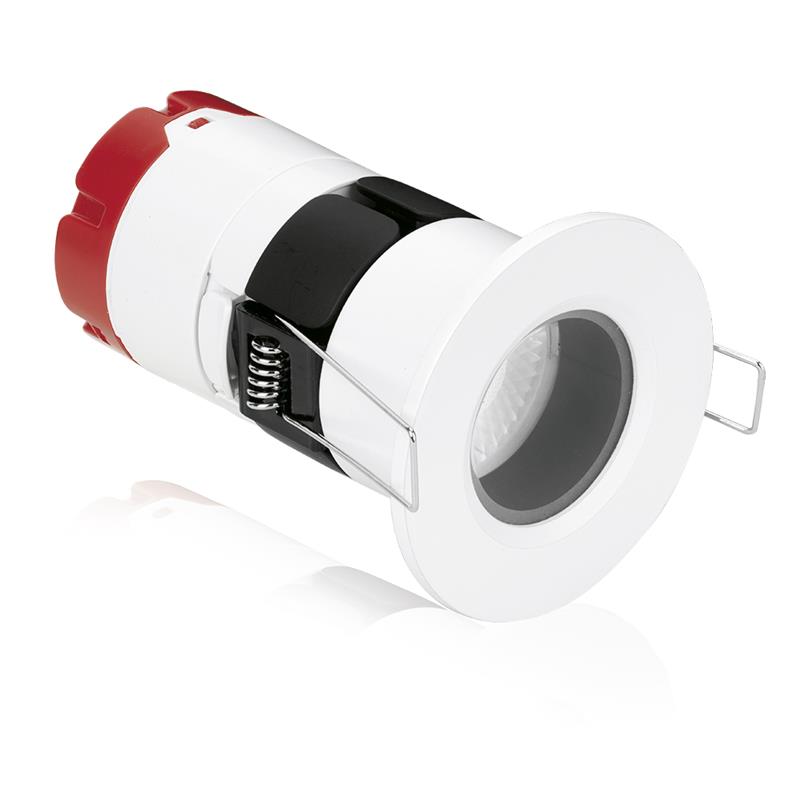

mPro™ IP65 Baffle Dimmable Fire Rated Downlight

Baffle, integrated, fire rated 7W LED downlight with unique convertible design to fit ceiling voids as shallow as 70mm. Incorporated miniaturised NanoDrive™ power supply. Available in 3000K and 4000K, delivering up to 76lm/W making it the most efficient fire rated downlight on the market.

Hoja de especificaciones


  • Rated to 30, 60 & 90 minute fire ceilings
  • Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
  • 40° lens as standard
  • FastRFix™ rapid install system connector included
  • IC cap included
  • ErP compliant - High colour rendering index (Ra) >80
  • Separate emergency pack available - AU-FRLM10EM
  • BS EN 1365-2: 2014 (Fire resistance)
  • BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (Acoustics)
  • (L70) at a 40,000 hour lifetime
  • BS EN 13141-1:2004 (Air leakage)
  • 5 Year Warranty – see auroralighting.com for details
Código SKU Potencia Lúmenes Temperatura De Color (k) Índice Crómatico Ángulo Del Haz
AU-MPRO5/30 7 500 3000 80 40
AU-MPRO5/40 7 530 4000 80 40

Voltaje De Entrada (mín.)
220
Voltaje De Entrada (máx.)
240
Factor De Potencia
0.85
Tipo De Voltaje De Entrada
AC
Clasificación De La Ip
IP65
Diámetro De Corte Mín. (mm)
65
Tamaño De Corte (mm)
72
Profundidad De Empotramiento(mm)
76
Altura (mm)
120
Vida Útil (horas)
40000
Regulable
Yes
Orientación
Deflector
Diámetro Total (mm)
88
