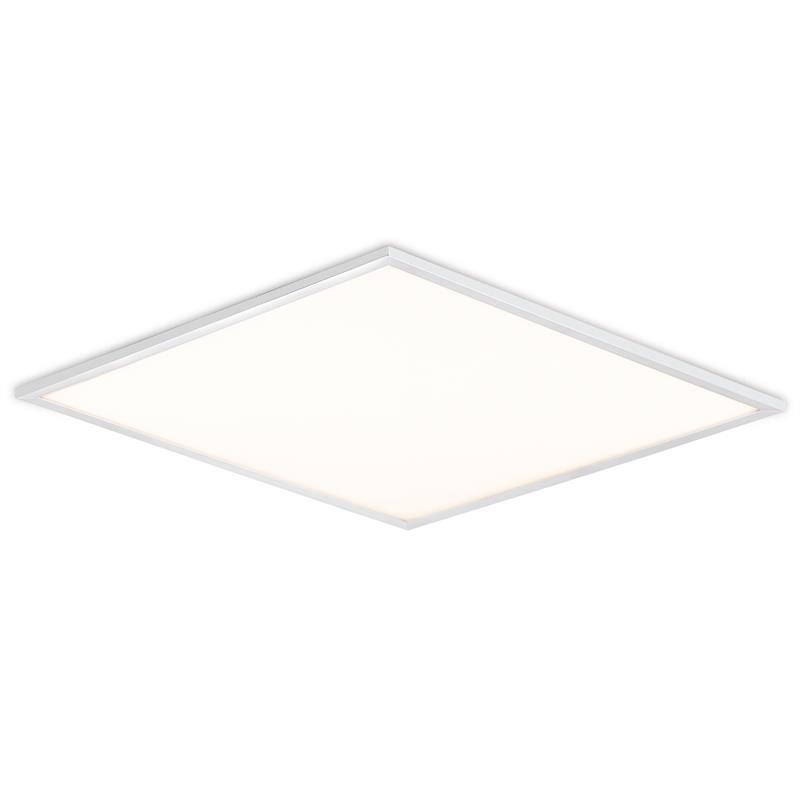

Versitile™ 38W 600 x 600mm IP65 Dimmable Panel

Highly efficient award winning edge-lit Versitile™ LED dimmable light panel. Fitted with high transmission diffuser for minimal glare. Lightweight slim aluminium frame in RAL9016 White finish. IP rating of IP65 from front (Driver and connections IP20). Suitable for installations in 15 and 24mm T-bar ceilings. May also be surface mounted or suspended. Fitted with a connector to easily connect the light panel and the driver. Supplied with remote LED driver. 5 year warranty.

Hoja de especificaciones


  • Edge lit design provides superior light performance and uniformity ideal for offices and commercial lighting
  • High transmission diffuser drastically reduces uncomfortable glare
  • Heatsink rapidly dissipates heat through rear of fitting
  • Dimmable and CX colour exchange version available to set the desired light environment
  • IP65 front – suitable for use in commercial kitchens, health care and similar environments
  • Suitable for installation in 15 & 24mm T-bar ceilings
  • Panel frame RAL9016 White
  • High colour rendering index (Ra) 80
  • SDCM <4 providing consistent light colour quality
  • Emergency options available
  • (L70) at a 50,000 hour lifetime
  • 5 Year Warranty - see www.auroralighting.com for details

Width (mm)
595
Voltaje de entrada (mín.)
220
Voltaje de entrada (máx.)
240
Factor de potencia
0.9
Tipo de voltaje de entrada
AC
Clasificación de la IP
IP65
Altura (mm)
9.5
Length (mm)
595
Vida útil (horas)
50000
Regulable
Yes
Orientación
Fijo

Download

Folleto de instrucciones
