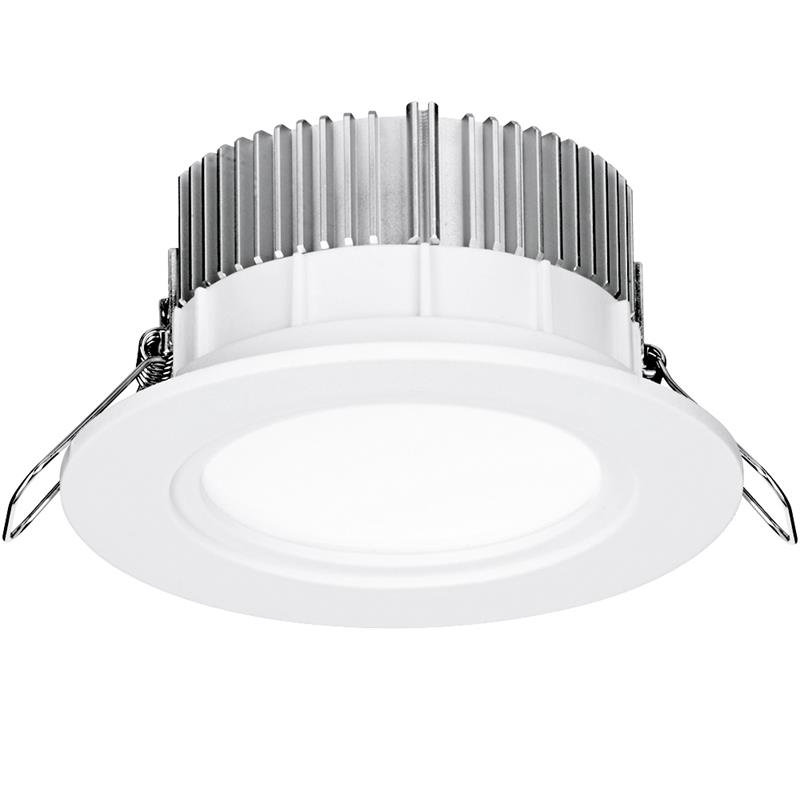

dSeries™ 13W IP44 Dimmable Downlight



Range of dSeries™ fixed, dimmable IP44 LED downlights fitted with icDOB™ (Driver on board) for maximum reliability and lifetime. No separate driver required. CrystalCool™ next generation thermal management. Available in 13W, 19W and 32W. Suitable for cut-out of 90mm, 150mm and 210mm. Available in 3000K and 4000K. Emergency and Baffled versions available. Smooth and linear dimming on most leading and trailing edge dimmers. Supplied with White bezel. 5 year warranty.

Código SKU Potencia Lúmenes Temperatura De Color (k) Ángulo Del Haz Regulable
AU-DL10013BW/30 13 650 3000 120 No
AU-DL10013BW/40 13 700 4000 120 No
Código SKU Descripción
AU-FRLM10EM 3 Hour Maintained Emergency Pack
product.pircombatibility
Características y beneficios
icDOB™ (Driver on Board) for maximum reliability and lifetime - NO SEPARATE DRIVER REQUIRED
CrystalCool™ next generation thermal management offers brighter light for longer
Reduced heatsink due to CrystalCool™ Technology allows installation in shallow ceiling voids
IP44 Rated
Lightweight polycarbonate bezel
Range of sizes and lumens outputs
Smooth and linear dimming on most leading / trailing edge dimmers
Baffle and Emergency options available
(L70) at a 40,000 hour lifetime
5 Year Warranty - see www.auroralighting.com for details
Read More
Información técnica
Vida Útil (horas)
40000
Factor De Potencia
0.9
Clasificación De La Ip
IP44
Overall Diameter (mm)
116
Altura (mm)
73
Profundidad De Empotramiento(mm)
73
Diámetro De Corte Mín. (mm)
90
Tamaño De Corte (mm)
90
  • Led no reemplazable
    Led no reemplazable
  • RoHS
    RoHS
  • compatible ErP
    compatible ErP
  • Equipamiento para uso interior
    Equipamiento para uso interior
  • IP44
    IP44
  • Fuente de luz LED
    Fuente de luz LED
  • CE
    CE
  • regulable
    regulable
  • tierra
    tierra
  • 240V
    240V





Pulling high performance from LED’s eliminates overshadowing and allows for smooth controlled dimming


Issues with space? Do not think that a driver will fit behind the fitting? Driver on Board means- no separate driver is required
A thermal regulation technology designed to remove heat from the LED chip, helping to sustain the lifetime of the product with constant light output
