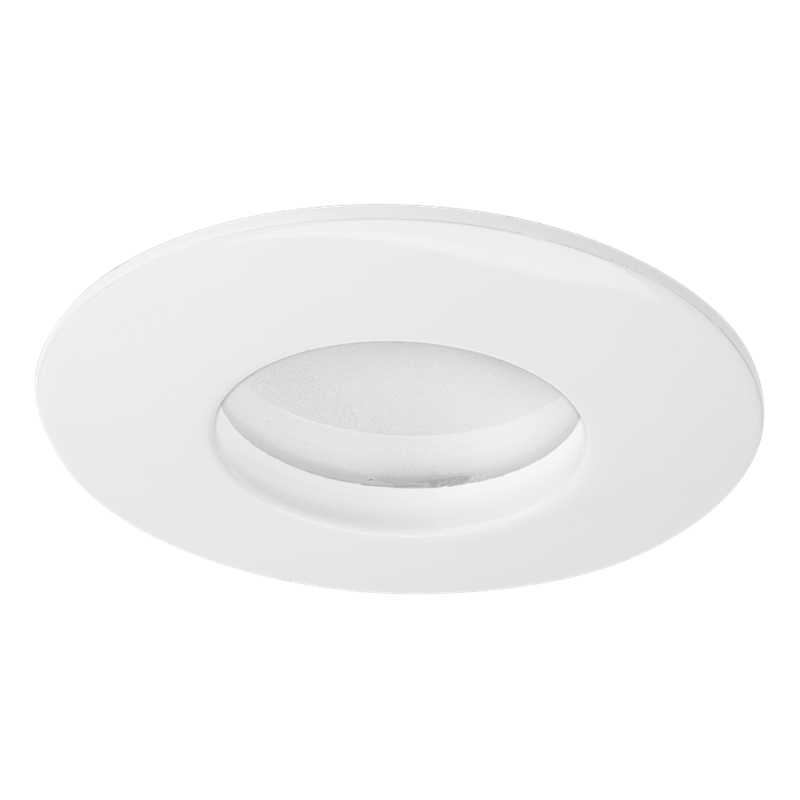

12V GU5.3 IP65 Downlight

The range of Marina spotlights is specially designed for bathroom applications. With its IP65 protection rating and wide cast aluminium collar, it is ideal for volumes 1 & 2. Available in white, chrome or brushed aluminium. Recommended for use with ICE™ lamps.

Hoja de especificaciones


  • High-quality die-cast aluminium
  • Specially designed for the bathroom - Ideal volumes 1 and 2
  • supplied with a removable flush-mounting pot for easy installation
  • Front panel flange clip for lamp replacement
  • Lampholder & bracket included
  • For use with GU5.3 lamps - lamps not included (Max 50W lamp)
  • White & Satin Nickel finish options
  • 1 year warranty
Código SKU Max. Lamp Wattage
AL-10110 50
AL-10113 50
AL-10115 50

Voltaje de entrada (mín.)
12
Voltaje de entrada (máx.)
12
Tipo de voltaje de entrada
AC
Clasificación de la IP
IP65
Longitud de corte (mm)
95
Diámetro de corte mín. (Mm)
74
TAMAÑO DE CORTE (mm)
74
Profundidad de empotramiento(mm)
121
Length (mm)
63
Regulable
No
Orientación
Fijo
Diámetro total (mm)
82
