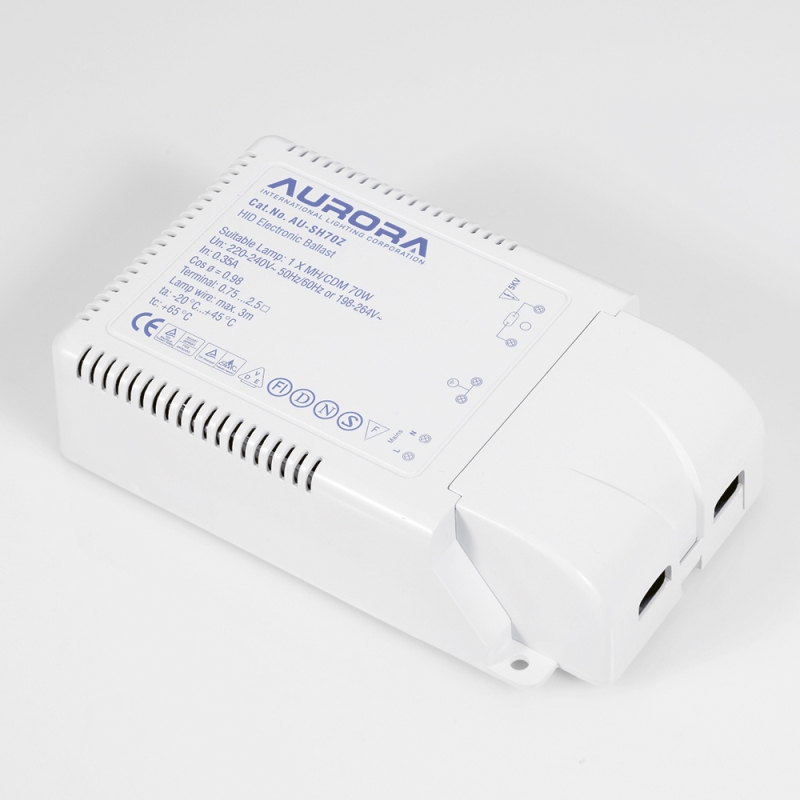

70W HID elektronisches Vorschaltgerät

70W Electronic HID Ballast. Digitally controlled HID ballasts with built in starter. Controlled lamp voltage regardless of supply voltage. Colour stability regardless of supply voltage. Lamp life increased by up to 50%. Automatic disconnection of faulty lamps (End of Life

Technisches Datenblatt


  • Digitally controlled HID ballasts with built in starter
  • Flicker free light
  • Controlled lamp voltage regardless of supply voltage
  • Colour stability regardless of supply voltage
  • Lamp life increased by up to 50%
  • Lamp re-strike time reduced by up to 50%
  • Automatic disconnection of faulty lamps (End of Life Protection)
  • Short-circuit proof
  • Over temperature protection
  • Pulse packages produce starting energy
  • SMD Technology
  • Silent operation
  • Built-in cable strain relief
  • Lightweight and compact
  • Safety compliance – EN 61347-1, EN 61347-2-1, EN 61347-2-3
  • EMC compliance – EN 55015, EN 61547, EN 61000-3-2
  • 5 Year Warranty (Subject to use of Philips lamps) - see www.auroralighting.com for details

Width (mm)
78
Eingangsspannung (Min)
220
Eingangsspannung (Max)
250
Eingangsspannung
AC
Schutzklasse
IP20
Höhe (mm)
33
Länge (mm)
133
Dimmbar
Nein
