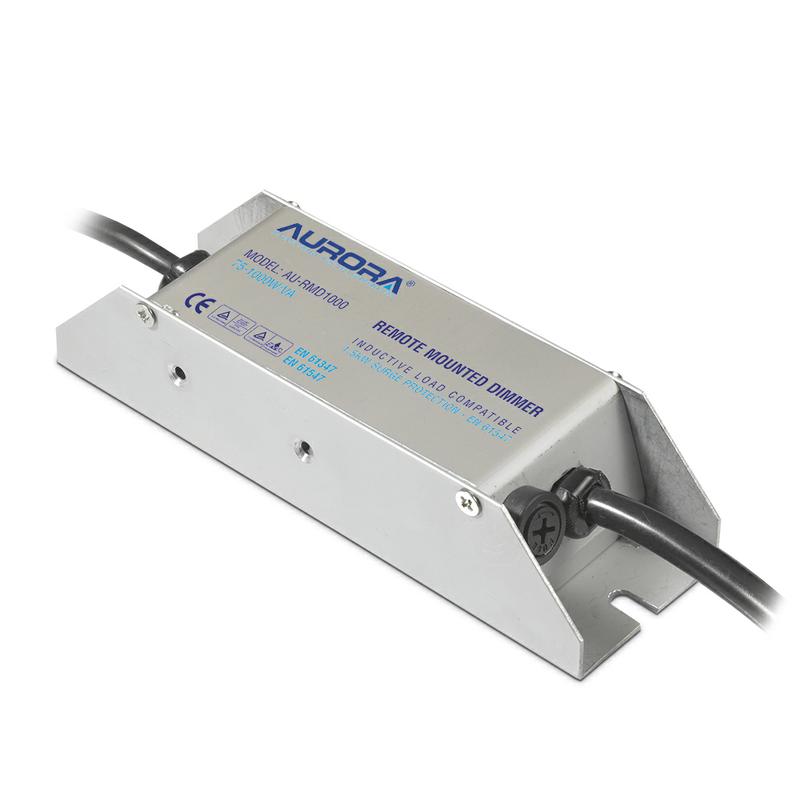

75-1000VA Ferndimmer

Technisches Datenblatt


  • 1000W Dimmer suitable for the control of dimmable electronic transformers, toroidal transformers, and tungsten lamps WITHOUT de-rating
  • Replaceable HRC fuse to allow replacement if damaged by the failure of GZ/GU10 lamps
  • Not suitable for use with fluorescent lamps
  • Not suitable for LED loads
  • Leading edge phase control
  • Dimmer module may be mounted in the ceiling void, cupboard etc.
  • Dimmer is controlled by momentary switches, therefore there is no buzzing at the switch position
  • Hold down switch for dimming control
  • Minimum load 75W, maximum load 1000W
  • Integrated over-temperature protection fuse
  • Smooth dimming operation from 0-100% light output
  • Complies with the latest Electrical Safety standard for dimmer switches EN 60669-2-1:2000 & EN 61058-1:1992+A1
  • EMC compliance - EN 55015, EN 61000, EN 61547

Width (mm)
45
Eingangsspannung (Min)
240
Eingangsspannung (Max)
240
Eingangsspannung
AC
Höhe (mm)
33
Länge (mm)
145
