LED Light Panel
Technisches Datenblatt

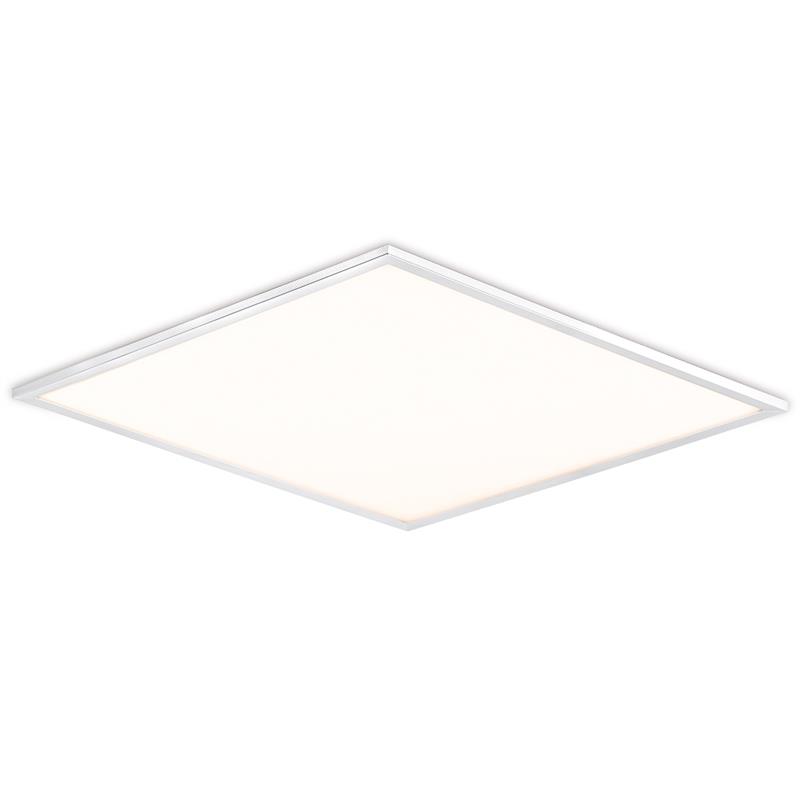

Versitile™ 38W IP44 500 x 500mm Dimmable Panel



DOWNLOADS
All Spec Sheets
FEATURES & BENEFITS
Edge lit design provides superior lighting performance and uniform light output across the surface
High transmission diffuser drastically reduces uncomfortable glare which can cause eye strain in well-lit offices
Dimmable and CX colour exchange version available to set the desired light environment
UGR (unified glare rating) - 19 - perfect for use in offices
Heatsink rapidly dissipates heat through rear of fitting
110-265V voltage range suitable for worldwide installation
Dimmable (1-10V) and CX options also available
IP44 from below – suitable for use in commercial kitchens, health care etc (recessed)
Up to x3 longer life than triphosphor fluorescent
Suitable for installation in 15 & 24mm T-bar ceilings
May also be surface mounted or suspended
Panel frame RAL9016 White
High colour rendering index (Ra) 80 – ErP Compliant
DALI options available, please call sales office for details
(L70) at a 40,000 hour lifetime
5 Year Warranty - see www.auroralighting.com for details
TECHNICAL INFORMATION
Width (mm)
498
DALI
Yes
Eingangsspannung (Min)
220
Eingangsspannung (Max)
240
Eingangsspannung
AC
Schutzklasse
IP44
Einbautiefe (mm)
12
Höhe (mm)
12
Länge (mm)
498
Lebensdauer (Stunden)
40000
Dimmbar
Ja
Positionseinstellung
Feststehend
  • Non-Replaceable LED
    Non-Replaceable LED
  • CE
    CE
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • ErP Compliant
    ErP Compliant
  • Nemko
    Nemko
  • IP44
    IP44
  • LED Light Source
    LED Light Source
  • 240V
    240V
  • Dimmable
    Dimmable
