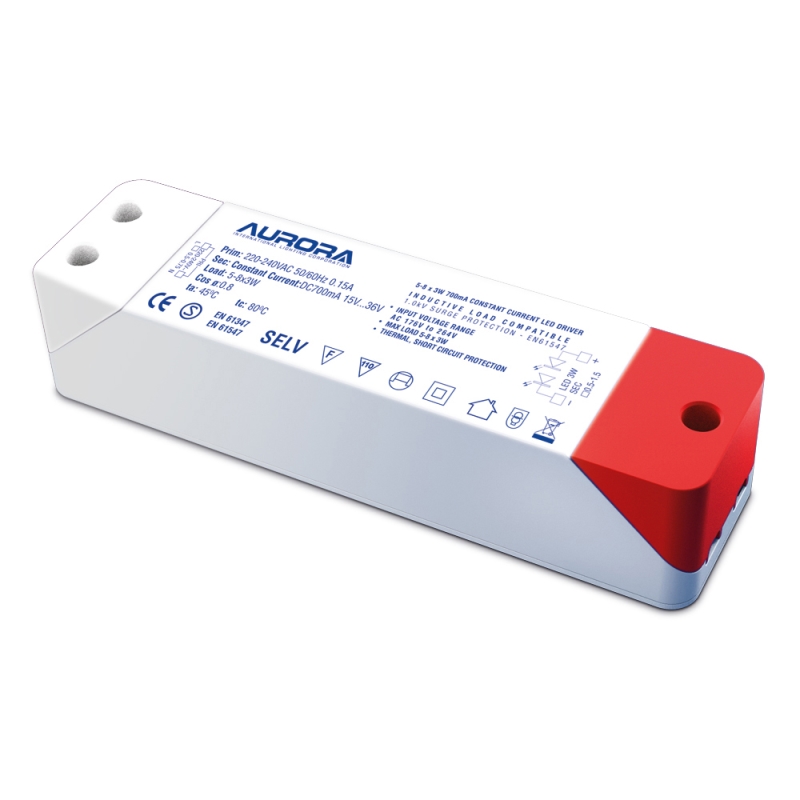

10W 700mA Konstantstrom-LED-Treiber (dimmbar)

Technisches Datenblatt


  • Registered Community Design 001886730
  • Dimmable constant current LED driver for use with 700mA LEDs
  • Dimmable with AU-DSP dimmers (de-rated to 50% Loading)
  • 700mA constant current output
  • Suitable for the supply of 1-10W 700mA LEDs
  • Overload protection
  • Short-circuit protection
  • Thermal protection
  • Loop-in, loop-out primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance - EN 61347
  • EMC compliance - EN 55015, EN 61000, EN 61547
  • Series wiring only
  • Leading Edge dimmers only
  • 3 Year guarantee

Width (mm)
48
Eingangsspannung (Min)
100
Eingangsspannung (Max)
250
Eingangsspannung
AC
Höhe (mm)
34
Länge (mm)
188
