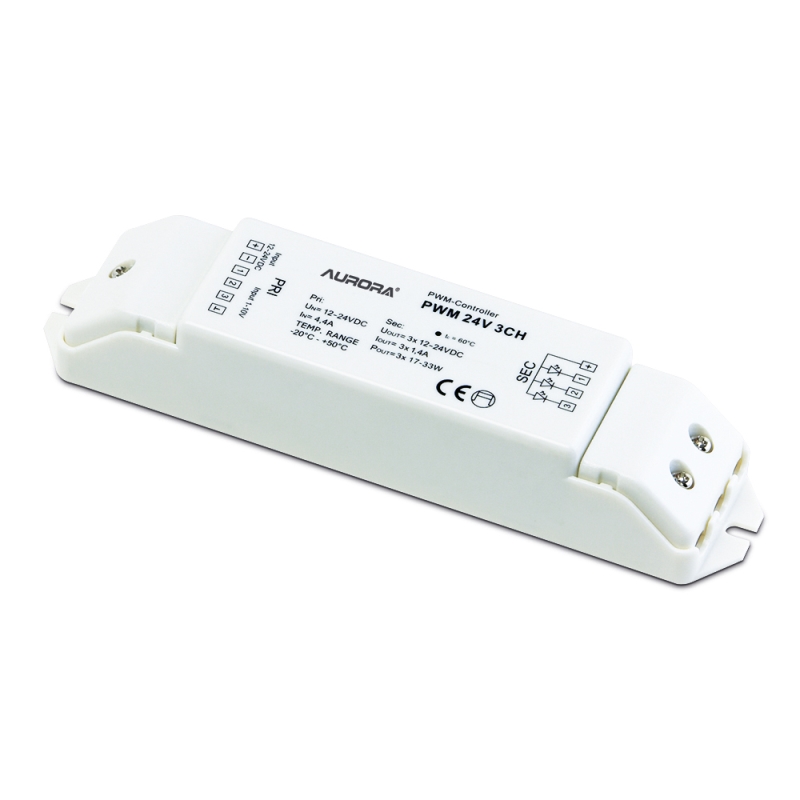

3 Channel Dimmable Control Unit

Technisches Datenblatt


  • Three Channel dimmable LED control unit
  • 3 x 1-10V control inputs (can be tied together to dim all channels with one dimmer - use AU-DSPLED 1-10V dimmer) OR AU-LEDMC1 3 channel RGB Sequencer
  • Three Channel output - RGB
  • 33-Watts per channel
  • Separate 24V DC LED driver required (100W Max.)
  • May be used to dim 24V DC RGB LED strip

Width (mm)
38
Eingangsspannung (Min)
24
Eingangsspannung (Max)
24
Eingangsspannung
DC
Höhe (mm)
30
Länge (mm)
167
