Pressstahl Schraubabdeckung ohne Glas Beleuchtungszubehör

Technisches Datenblatt

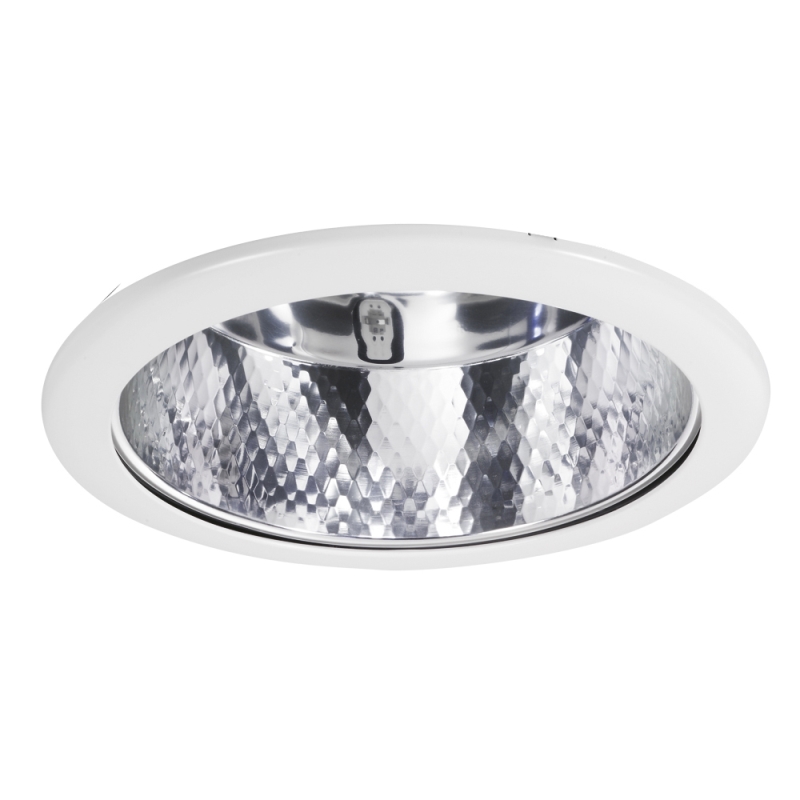

  • Compact fluorescent downlight with faceted aluminium reflector
  • For use with long life horizontally mounted compact fluorescent lamps for high efficiency and reduced running costs
  • Suitable for display lighting in shops, offices, showrooms, hotels, etc.
  • Easily installed by means of a 3-point fixing system
  • Low height of fitting allows for installation in shallow ceiling voids
  • Tiltable lampholders for ease of lamp replacement
  • Single & twin lamp versions from 10W to 13W
  • Lamps are not included
  • Supplied with non-dimmable high frequency electronic ballast with European key components as standard
  • Screwless loop-in, loop-out primary wiring terminals
  • Dimmable version is 1-10v and requires additional wiring
  • Accessories include twist and lock bezels, IP65 splash proof lens and floating glasses
  • Maximum ceiling thickness - 20mm
  • Non-dimmable
  • *Add suffix EM to catalogue number for Emergency option

Overall Diameter (mm)
