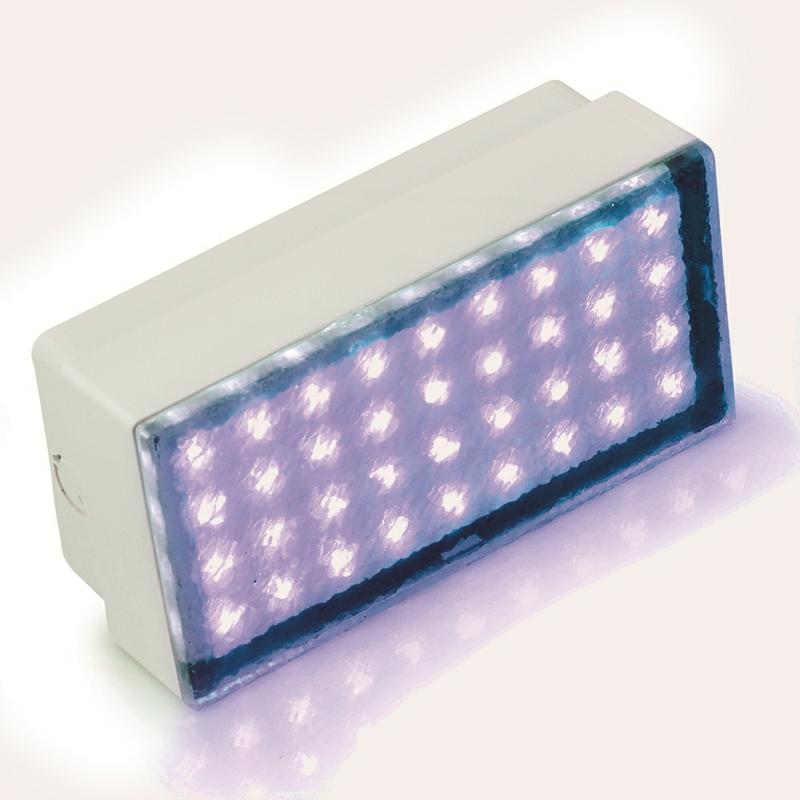

IP67 Rectangular Translucent Walkover

Technisches Datenblatt


  • IP67 Mains voltage translucent brick lights
  • Suitable for use in pathways, decking, wall mounting, etc.
  • Integrated LED driver - no separate driver required
  • Slip resistant brick face
  • Cool operating temperature
  • NON-REPLACEABLE LED life of up to 30,000 hours with a total power consumption of 4W for highly efficient operation
  • White, blue and green LED colour versions available
  • The cut-out dimension allows for a 5mm grout line all around the fitting
  • Pre-wired with 0.3m cable
  • Must be used with mounting sleeve (supplied).
  • Non-dimmable

Width (mm)
100
Eingangsspannung (Min)
220
Eingangsspannung (Max)
250
Eingangsspannung
AC
Schutzklasse
IP67
Einbautiefe (mm)
70
Höhe (mm)
100
Länge (mm)
200
Dimmbar
Nein
