Fire Rated Downlighting
Energie
Datenblatt

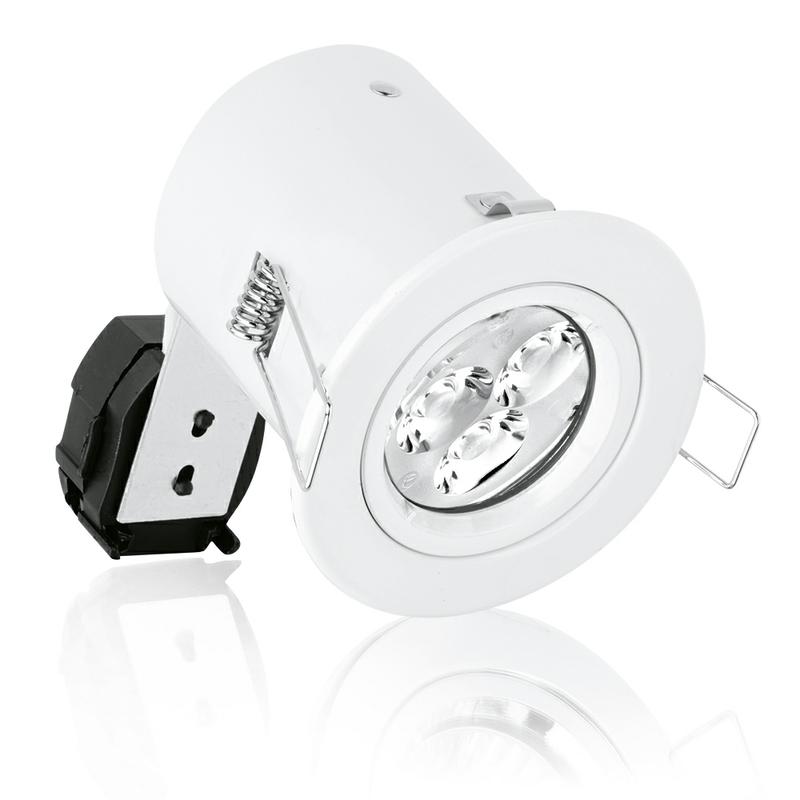

GU10 Fixed Lock Ring Downlight



This Aurora 240V GU10 Pressed/Cast Fixed Compact Fire Rated Downlight has a reduced recess depth for shallow ceiling voids. It’s also fitted with intumescent material which completely seals the downlight and cut-out in the event of a fire. Suitable for 30, 60 & 90 minute fire rated ceilings. Note: Not for use with dichroic halogen (cool beam) lamps.

Eigenschaften & Vorzüge
Registered Community Design 390612-0001/2/3
UK Patent GB2426321
Integrated intumescent material completely seals the downlight and cut-out in the event of a fire
Reduced recess depth for shallow ceiling voids
Not for use with dichroic halogen (cool beam) lamps
Tested in 30, 60 & 90 minute fire rated ceilings
Tested to BS476 Part 21
Tested to BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics) confirming that they maintain the ability for an internal or separating floor to provide sound insulation
Lamp not included
2 Year guarantee
Mehr Details
Technische Informationen
Lebensdauer (Stunden)
5000
Overall Diameter (mm)
85
Einbautiefe (mm)
105
Ausschnitt Durchmesser Min. (mm)
72
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • Erdung
    Erdung
  • 240V
    240V
