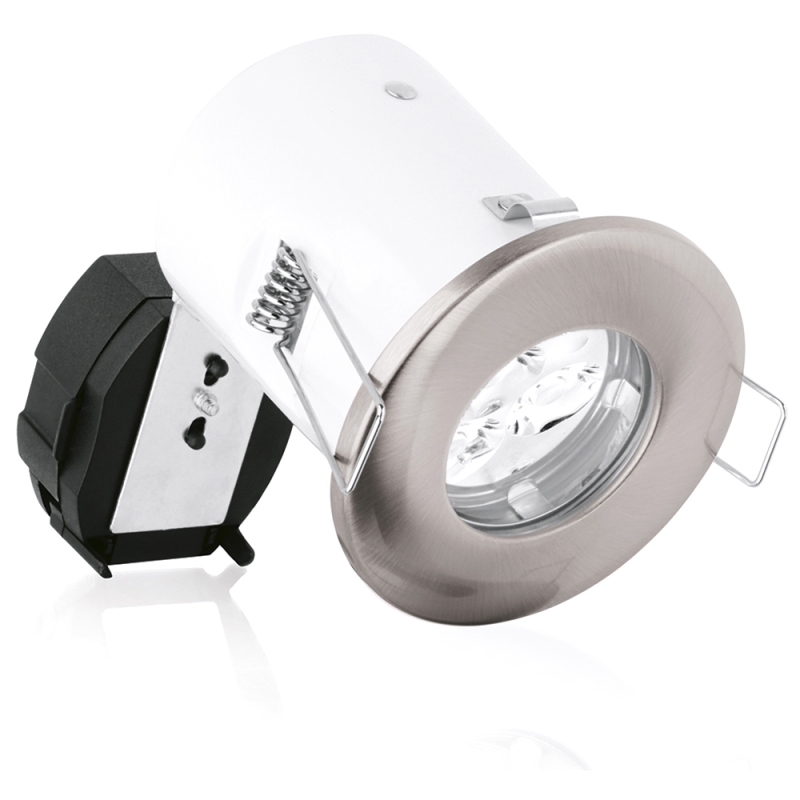

MR16 IP65 Fire Rated Downlight

This is a Dimmable 12V MR16 Pressed Steel IP65 Fire Rated Downlight. It is fitted with intumescent material which completely seals the downlight and cut-out in the event of a fire. Suitable for 30, 60 & 90 minute fire rated ceilings. This lamp is also designed to have reduced recess depth for shallow ceiling voids. Note: For use with Aluminium Reflector Lamps only.

Technisches Datenblatt


  • Integrated intumescent material completely seals the downlight and cut-out in the event of a fire
  • Tested in 30, 60 & 90 minute fire rated ceilings
  • Requires a suitable 12V Constant Voltage Transformer (Not Included)
  • UK Patent GB2426321
  • Tested to BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics) confirming that they maintain the ability for an internal or separating floor to provide sound insulation
  • Includes 50W MR16 or GU10 Aluminium reflector lamp (excluding A2-DLM924/A2-DLM963)
  • Reduced height fire rated can allows installation in shallow ceiling voids2 Year guarantee
  • 2 Year guarantee
Artikelnr. Wattage Beam Angle
A2-DLL953PC 50 36
A2-DLL953SN 50 36

Eingangsspannung (Min)
12
Eingangsspannung (Max)
12
Eingangsspannung
AC
Schutzklasse
IP65
Ausschnitt Durchmesser Min. (mm)
65
Einbautiefe (mm)
115
Lebensdauer (Stunden)
3000
Dimmbar
Ja
Overall Diameter (mm)
82
