Fire Rated Downlighting
Datenblatt

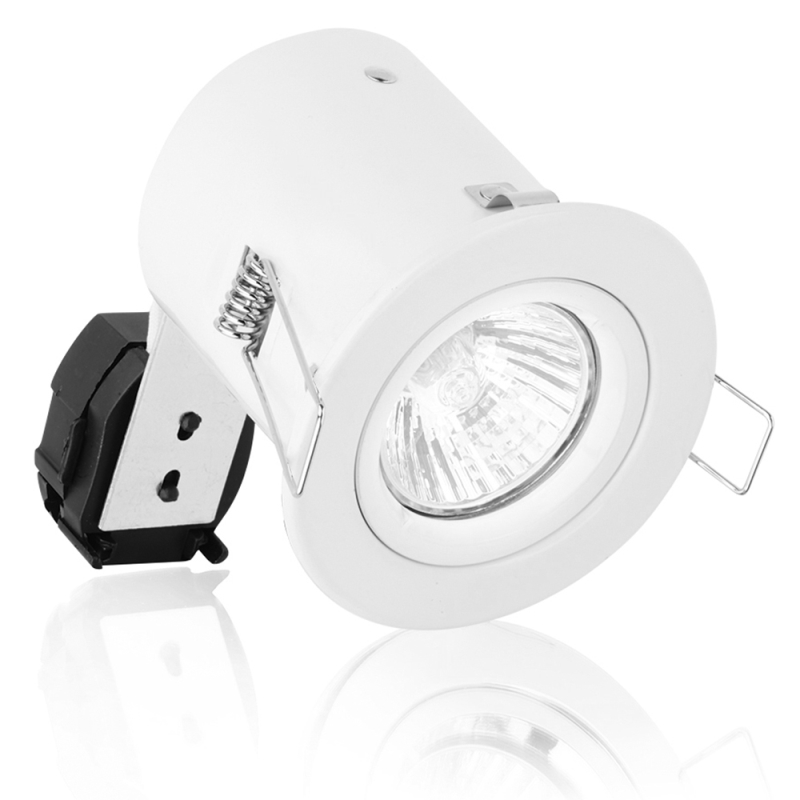

MR16 Fire Rated Downlight



Integrated intumescent material completely seals the downlight and cut-out in the event of a fire. The A2-DLL681 features reduced recess depth for shallow ceiling voids and is intended for use with aluminium reflector lamps only. Registered Community Design 390612-0001/2/3 and UK Patent GB2426321.

Eigenschaften & Vorzüge
Requires a suitable 12V Constant Voltage Transformer (Not Included)
Integrated intumescent material completely seals the downlight and cut-out in the event of a fire
Tested in 30, 60 & 90 minute fire rated ceilings
Tested to BS476 Part 21
Tested in 30, 60 & 90 minute fire rated ceilings
Tested to BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics) confirming that they maintain the ability for an internal or separating floor to provide sound insulation
UK Patent GB2426321
Read More
Technische Informationen
Lebensdauer (stunden)
3000
Overall Diameter (mm)
85
Einbautiefe (mm)
105
Ausschnitt Durchmesser Min. (mm)
72
  • CE
    CE
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • Class 3 Equipment
    Class 3 Equipment
