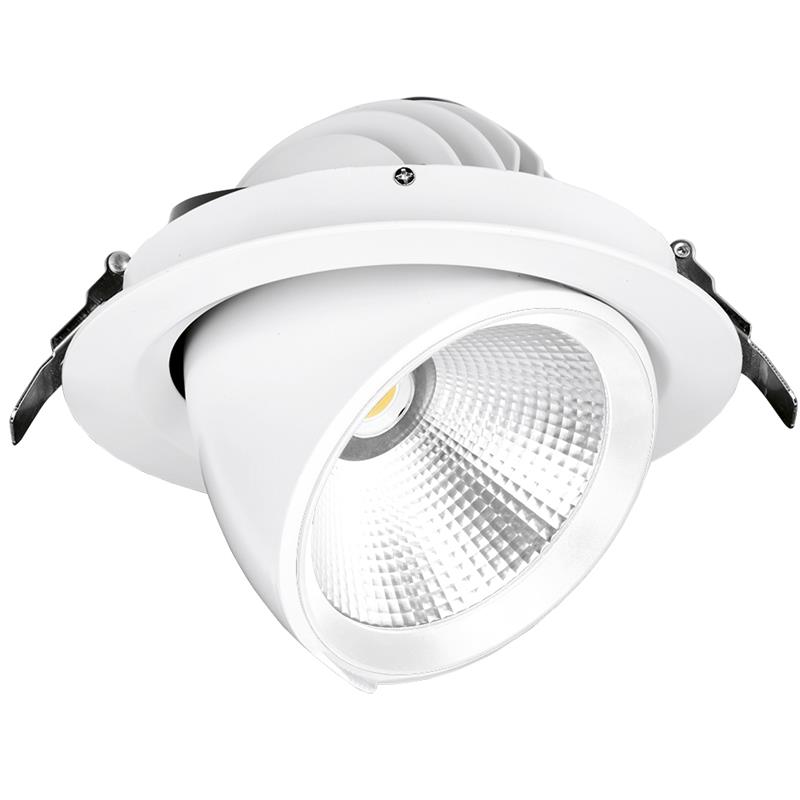

Apex™ Retail Wallwasher

Adjustable recessed wallwasher designed to highlight displays and wall features. Perfect for applications that require high quality light output. Adjustable rotate and tilt angles to adapt to changing environments. Producing 3000 lumens from 30W LED, it is the perfect replacement for 35W metal halide.

Spec Sheet


  • High power COB LED wallwasher, designed for retail and commercial applications
  • Rotates 350° with a horizontal adjustment 35° available with 24° and 45° beam angles
  • No UV from the LED light source prevents stock fade and discolouration
  • Supplied with remote LED driver
  • Pre-wired with 1.2m flex and 2-pin plug
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
EN-RSP324AK/40 30 3000 4000 80
EN-RSP345AK/40 30 3000 4000 80

Input Voltage (Min)
200
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP20
Cutout Diameter Min. (mm)
165
Cutout Diameter Max. (mm)
170
Recess Depth (mm)
153
Height (mm)
128.5
Lifetime (Hours)
40000
Dimmable
No
Positional Adjustment
Adjustable
Overall Diameter (mm)
180
