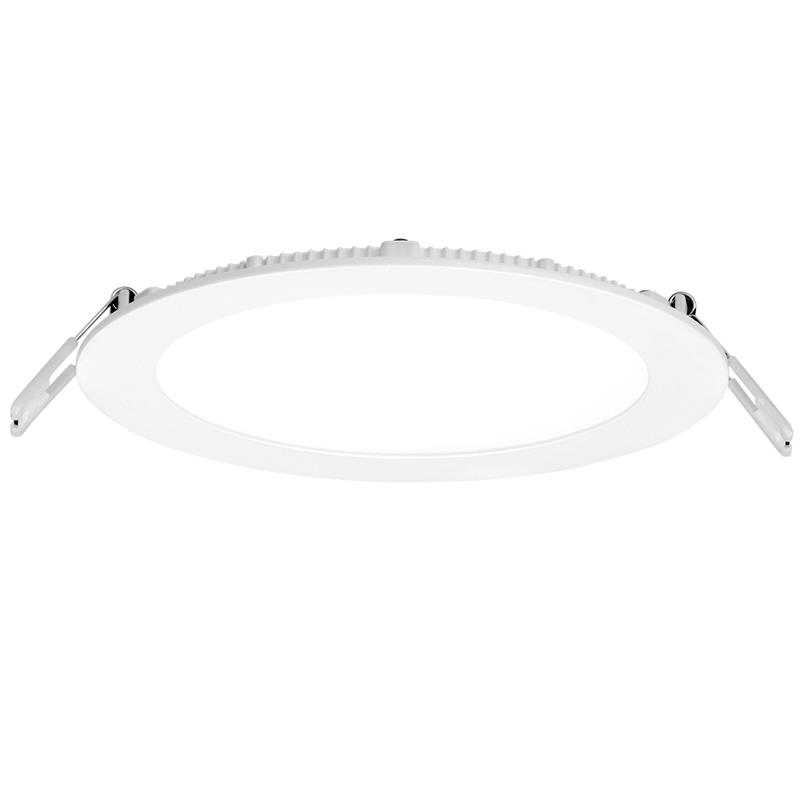

Slim-Fit™ 12W IP44 Round Low Profile LED Downlight

The Enlite range of Slim-Fit™ low profile downlights are engineered to deliver superior light output and uniformity utilising the latest edge-lit LED technology. At only 25mm deep including bracket, they are an ideal solution where ceiling voids are limited but high lumen output is required.

Spec Sheet


  • Low cost energy saving alternative to compact fluorescent fittings
  • Edge-lit low profile ideal for installations with limited recess space (25mm) and shallow ceiling voids
  • Plug and play remote driver for easy installation (40mm space required)
  • Separate triac dimmable driver available
  • Life not affected by frequent switching e.g. when used with occupancy controls
  • Pre-wired with 1.2m flex and 2-pin plug
  • 1.5kV surge protected
  • 3 year warranty
SKU Code Wattage Lumens Colour Temperature Ra Download
EN-PL12BAK/30 12 660 3000 80
EN-PL12BAK/40 12 780 4000 80

Lifetime (Hours)
25000
Power Factor
0.9
IP Rating
IP20
Overall Diameter (mm)
174
Height (mm)
25
Recess Depth (mm)
40
Cutout Diameter Min. (mm)
157

Download
