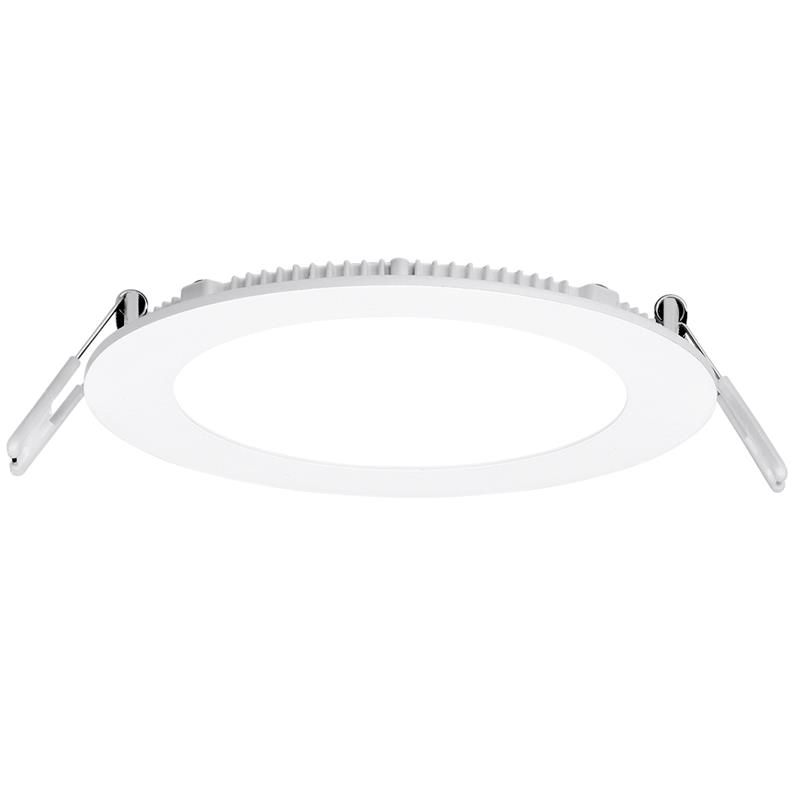

Slim-Fit™ 9W IP44 Round Low Profile LED Downlight



The Enlite range of Slim-Fit™ low profile downlights are engineered to deliver superior light output and uniformity utilising the latest edge-lit LED technology. At only 25mm deep including bracket, they are an ideal solution where ceiling voids are limited but high lumen output is required.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-PL09BAK/30 9 450 3000 No
EN-PL09BAK/40 9 500 4000 No
Downloads
Features & Benefits
Low cost energy saving alternative to compact fluorescent fittings
Edge-lit low profile ideal for installations with limited recess space (25mm) and shallow ceiling voids
Plug and play remote driver for easy installation (40mm space required)
Separate triac dimmable driver available
Life not affected by frequent switching e.g. when used with occupancy controls
Pre-wired with 1.2m flex and 2-pin plug
1.5kV surge protected
3 year warranty
Read More
Technical Information
Lifetime (Hours)
25000
Power Factor
0.9
IP Rating
IP20
Overall Diameter (mm)
145
Height (mm)
25
Recess Depth (mm)
40
Cutout Diameter Min. (mm)
133
Cutout Diameter Max. (mm)
133
  • IP44
    IP44
  • SAA
    SAA
  • IC
    IC
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
