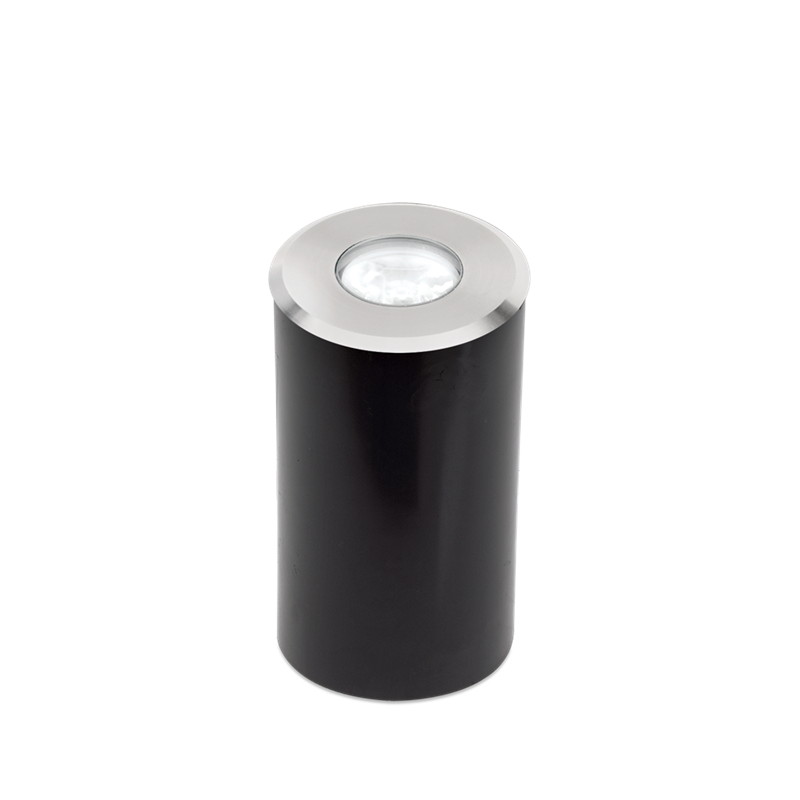

M-Lite™ 240V IP67 Stainless Steel Marker Light

The M-Lite™ 1W LED marker light is discreet and small in size yet powerful, making this product perfectly suited for low level or ground lighting. Ideal to light up pathways, decking areas, patios and plinth lighting.

Spec Sheet


  • 240V Mains voltage 304 stainless steel LED marker light
  • IP67 rated - ideal for both interior & exterior applications
  • Available in warm white (3000K), cool white (4000K) and blue
  • Pre-wired with 600mm of cable
  • Supplied with mounting sleeve for in-ground and solid floor installation
  • Cut-out 35mm without mounting sleeve. Cut-out 40mm with mounting sleeve
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
EN-ML1/30 1 63 3000 80
EN-ML1/40 1 66 4000 80
EN-ML1/BLU 1 17 80

Input Voltage (Min)
100
Input Voltage (Max)
240
Power Factor
0.46
Input Voltage Type
AC
IP Rating
IP67
Cutout Diameter Min. (mm)
35
Cutout Diameter Max. (mm)
40
Recess Depth (mm)
100
Height (mm)
100
Length (mm)
78
Lifetime (Hours)
30000
Dimmable
No
Positional Adjustment
Fixed
Overall Diameter (mm)
42

Download

Instruction Leaflet
