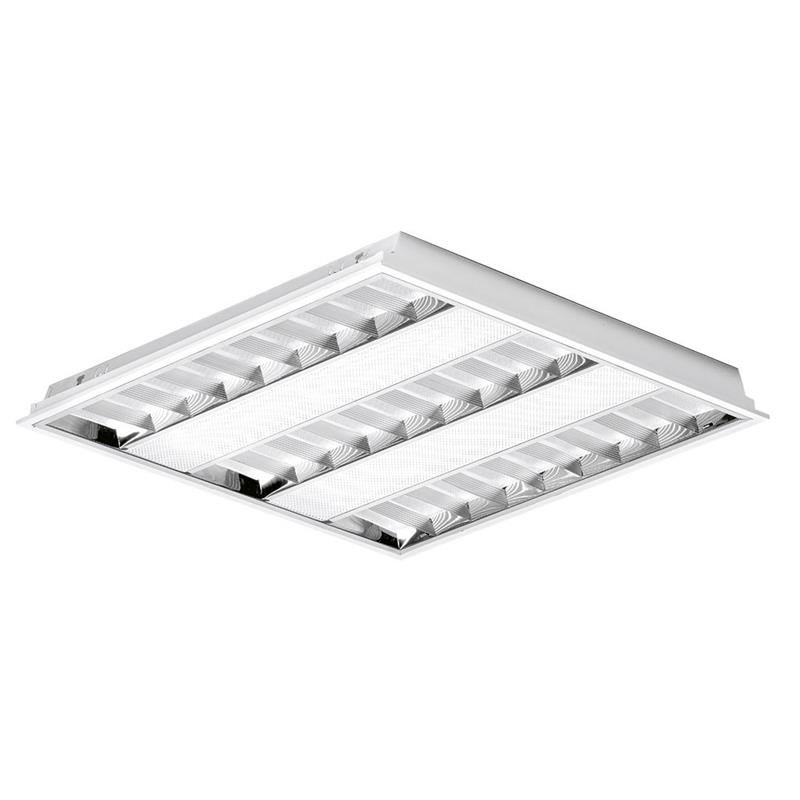

ET6060™ 600x600mm LED Louvred Troffer

The ET6060™ and ET1230™ has a classic louvre design with energy saving LED technology inside. This back-lit louvred troffer has a deep curve aluminium mirror reflector and prismatic diffuser keeping the UGR below 19, ideal for office or education applications with efficacy up to 100lm/W for great energy savings. This luminaire is designed to last with its phosphate treated surfaces, making it more resistant to corrosion and wear.

Spec Sheet


  • Back-lit design with prismatic diffuser provides uniformed low glare light output
  • 77° beam angle
  • UGR <19 (Unified Glare Rating) - suitable for use in offices
  • Power Factor >0.9
  • Pre-wired with 1.2m flex and 2-pin plug
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
EN-LP6060AK/30 33 3100 3000 80
EN-LP6060AK/40 33 3300 4000 80

Width (mm)
595
Input Voltage (Min)
200
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP20
Height (mm)
56
Length (mm)
595
Lifetime (Hours)
40000
Dimmable
No
Positional Adjustment
Fixed
