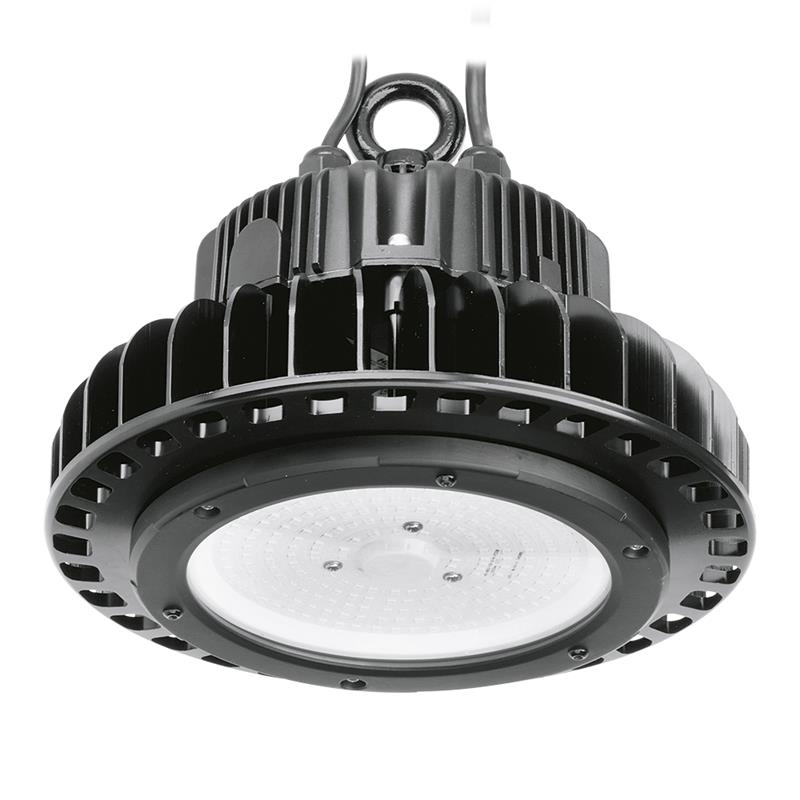

Ariah2™ 150W IP65 LED Highbay

The new and improved Ariah2™ has been redesigned using the latest LED technology offering a range of 124lm/W LED highbays that are not only super-efficient but compact in size. Non-dimmable and 120° beam angle as standard with reflectors sold separately. Available in 100W, 150W and 200W versions.

Spec Sheet


  • IP65 rated and die-cast housing for maximum protection in all environments - IK08 impact rating
  • High thermal efficient aluminium heatsink - low operating temperature
  • Significant energy savings and reduced maintenance over HID highbays
  • Ideal for use in warehousing, manufacturing, conference centres, industrial lighting, canopies etc
  • High power factor of 0.95
  • 120° beam angle as standard, optional 60°, 70° or 90° aluminium and polycarbonate reflectors available (sold separately)
  • Suspension and wall mounting options
  • Supplied with 1.2m cable and plug
  • Max ambient temperature 50°C
  • 1.5kV surge protection
  • 5 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
EN-HB150BAK/40 150 18525 4000 80
EN-HB150BAK/60 150 18525 6000 80

EN-HBACR2 Ariah™ PRO 70° LED Highbay Polycarbonate Reflector
EN-HBMB1 Ariah™ PRO LED Highbay Mounting Bracket
EN-RF601 Ariah™ PRO 60° LED Highbay Aluminium Reflector
EN-RF901 Ariah™ PRO 90° LED Highbay Aluminium Reflector
Input Voltage (Min)
100
Input Voltage (Max)
240
Power Factor
0.95
Input Voltage Type
AC
IP Rating
IP65
Height (mm)
200
Lifetime (Hours)
50000
Dimmable
Yes
Positional Adjustment
Fixed
Overall Diameter (mm)
252
