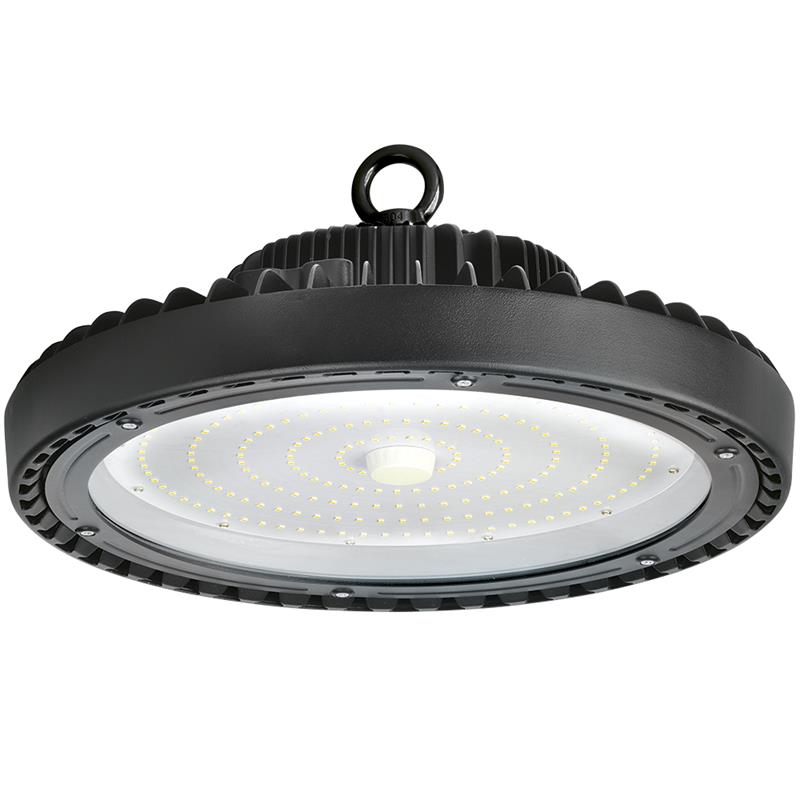

100-240V 150W IP65 LED Highbay

The new super efficient Ariah™ range of 110lm/W LED highbays are perfect and ready to go for nearly any industrial application and installation. Utilising the latest in high performing LED technology with 1-10V dimming as standard, they're perfect to maximise energy savings, especially when used with daylight or occupancy sensors. Available in 100W, 150W and 200W versions.

Spec Sheet


  • IP65 rated and die-cast housing for maximum protection in all environments - IK08 impact rating
  • High thermal efficient aluminium heatsink - low operating temperature
  • 1-10V dimming function built in as standard - allows for use with daylight or occupancy sensors
  • Significant energy savings and reduced maintenance over HID highbays
  • Ideal for use in warehousing, manufacturing, conference centres, industrial lighting, canopies etc
  • High power factor of 0.95
  • 120° beam angle as standard, optional 60° or 90° and acrylic reflectors available
  • Suspension and wall mounting options
  • Pre-wired with 1.5m flex and 2-pin plug
  • Max ambient temperature 50°C
  • 1.5kV surge protection
  • 5 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
EN-HB150AK/40 150 16500 4000 80
EN-HB150AK/60 150 15500 6000 80

Input Voltage (Min)
100
Input Voltage (Max)
240
Power Factor
0.95
Input Voltage Type
AC
IP Rating
IP65
Height (mm)
220
Lifetime (Hours)
50000
Dimmable
Yes
Positional Adjustment
Fixed
Overall Diameter (mm)
400
