Coming Soon E1230™ PRO
Spec Sheet

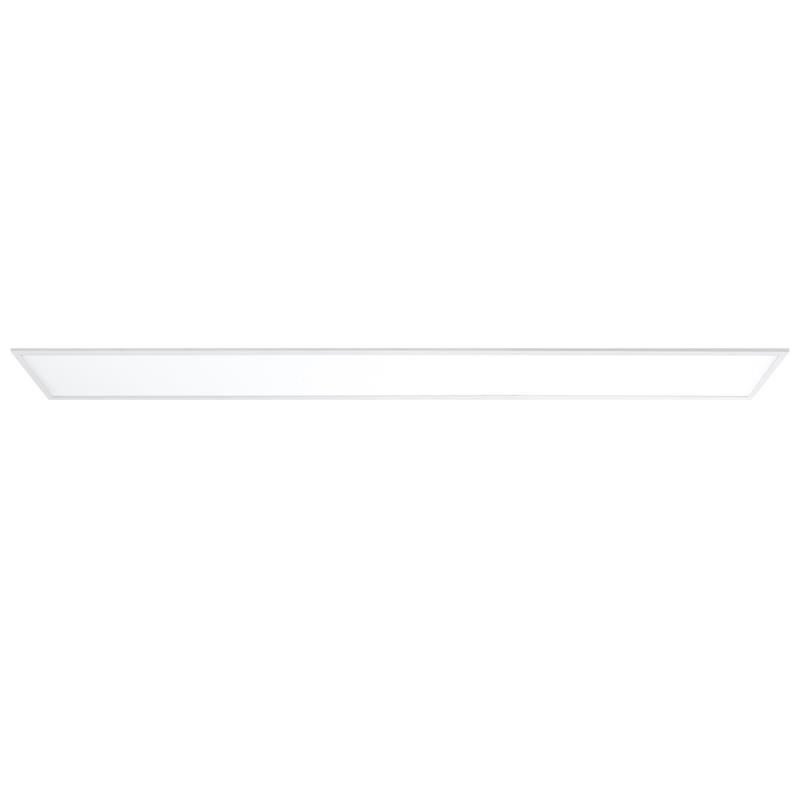

E1230™ PRO 1200mm x 300mm 30W LED Flat Panel



The brand new E6060™, E1230™ and E1260™ PRO range delivers an industry leading 110lm/W, producing over 60% energy savings compared to traditional fluorescent. A superior level of construction results in an IP44 rating as standard for damp environments.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-FPRO1230AK/40 30 3300 4000 No Coming Soon
EN-FPRO1230AK/50 30 3300 5000 No Coming Soon
EN-FPRO1230DAAK/40 30 3300 4000 Yes Coming Soon
EN-FPRO1230DAAK/50 30 3300 5000 Yes Coming Soon
EN-FPRO1230VAK/40 30 3300 4000 Yes Coming Soon
EN-FPRO1230VAK/50 30 3300 5000 Yes Coming Soon
Downloads
All IES/LDT Files
EN-FPRO1230AK/40
EN-FPRO1230AK/50
EN-FPRO1230DAAK/40
EN-FPRO1230DAAK/50
EN-FPRO1230VAK/40
EN-FPRO1230VAK/50
Features & Benefits
Edge-lit design and optical pattern light guide engineered for even light distribution
Suitable for installation in 15 & 24mm T-bar ceilings
SDCM <4 providing consistent light colour quality
IP44 rated from the front
UGR 19 (Unified Glare Rating) - suitable for use in offices
Flicker free driver - Power Factor >0.9
1-10V dimmable, DALI and emergency versions available
Surface mount box, ceiling recess box and adjustable suspension kit available
Pre-wired with 1.2m flex and 2-pin plug
1.5kV surge protection
5 year warranty
Read More
Technical Information
Lifetime (Hours)
50000
Power Factor
0.9
IP Rating
IP44
Length (mm)
1195
Width (mm)
295
Height (mm)
10
DALI
Yes
  • IK06
    IK06
  • SAA
    SAA
  • Do Not Cover
    Do Not Cover
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • IP44
    IP44
