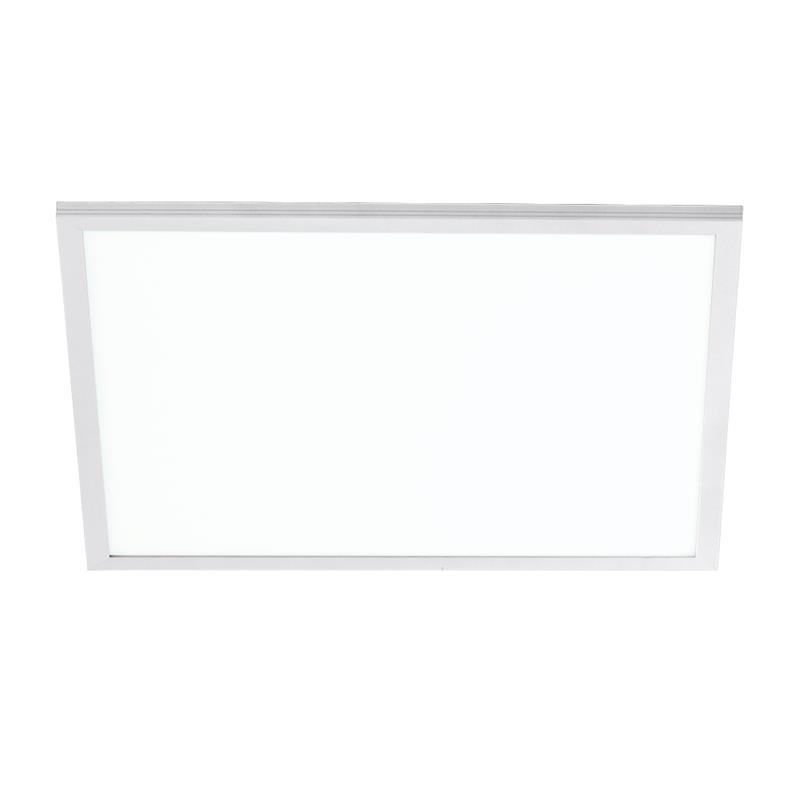

E6060™ 600 x 600mm 40W Dimmable LED Flat Panel



The ultra-slim E6060™ and E1230™ edge-lit LED panel range is suitable for a wide range of applications including office, education and commercial spaces. The advanced aluminium heat sink dissipates unwanted heat allowing for a flat form factor. The range is engineered to deliver a Unified Glare Rating of 19 (UGR19) for even light distribution.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-FPD6060BAK/40 40 3600 4000 Yes
Features & Benefits
Optical pattern light guide designed for even light distribution
Suitable for installation in 15 & 24mm T-bar ceilings
SDCM <4 providing consistent light colour quality
UGR 19 (Unified Glare Rating) - suitable for use in offices
Flicker free driver - Power Factor >0.9
Life not affected by frequent switching e.g. when used with occupancy controls
1-10V Dimmable option and separate Emergency Pack available
Surface mount box and adjustable suspension kit available
Pre-wired with 1.2m flex and 2-pin plug
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.9
Length (mm)
595
Width (mm)
595
Height (mm)
9.5
