Coming Soon E6060™
Energy
Spec Sheet

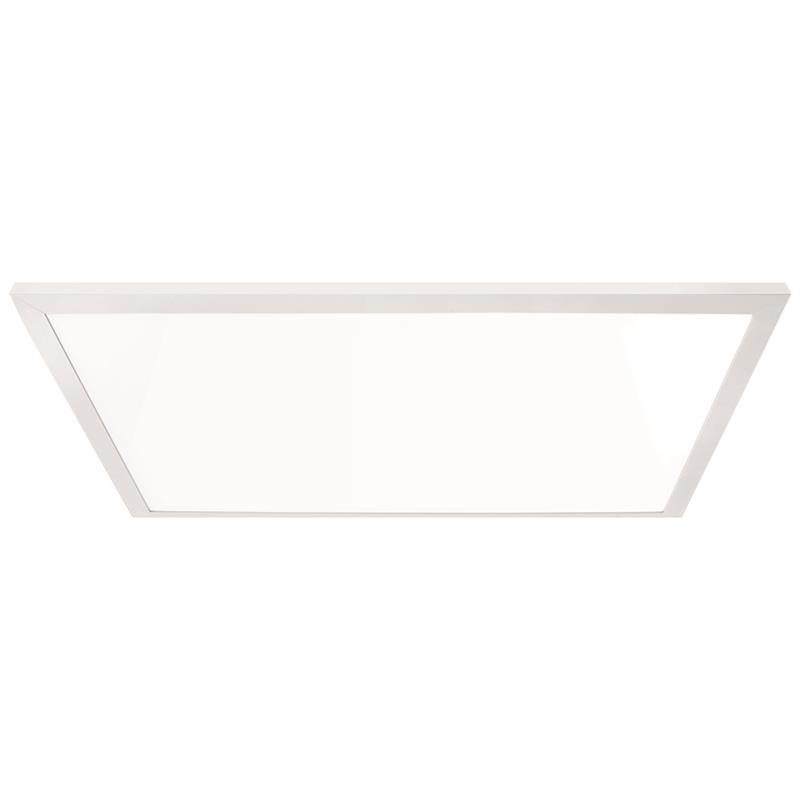

E6060™ 600 x 600mm 36W LED Flat Panel



The E6060™ has been upgraded to produce 95lm/W for outstanding energy savings. The light guide board and diffuser have been engineered to ensure maximum light output and complete uniformity. Suitable for a wide range of applications including office, education and commercial spaces.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-FP6060CAK/40 36 3400 4000 No Coming Soon
EN-FP6060CAK/50 36 3400 5000 No Coming Soon
EN-FP6060CDAAK/40 36 3400 4000 Yes Coming Soon
EN-FP6060CDAAK/50 36 3400 5000 Yes Coming Soon
EN-FP6060CVAK/40 36 3400 4000 Yes Coming Soon
EN-FP6060CVAK/50 36 3400 5000 Yes Coming Soon
Downloads
All IES/LDT Files
EN-FP6060CAK/40
EN-FP6060CDAAK/40
EN-FP6060CVAK/40
Features & Benefits
Edge-lit design and optical pattern light guide engineered for even light distribution
Suitable for installation in 15 & 24mm T-bar ceilings
SDCM <5 providing consistent light colour quality
UGR 19 (Unified Glare Rating) - suitable for use in offices
Flicker free driver - Power Factor >0.9
Life not affected by frequent switching e.g. when used with occupancy controls
1-10V dimmable, DALI and emergency versions available
Surface mount box and adjustable suspension kit available
Pre-wired with 1.2m flex and 2-pin plug
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
30000
Power Factor
0.9
IP Rating
IP20
Length (mm)
595
Width (mm)
595
Height (mm)
10
DALI
No
  • Do Not Cover
    Do Not Cover
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • SAA
    SAA
