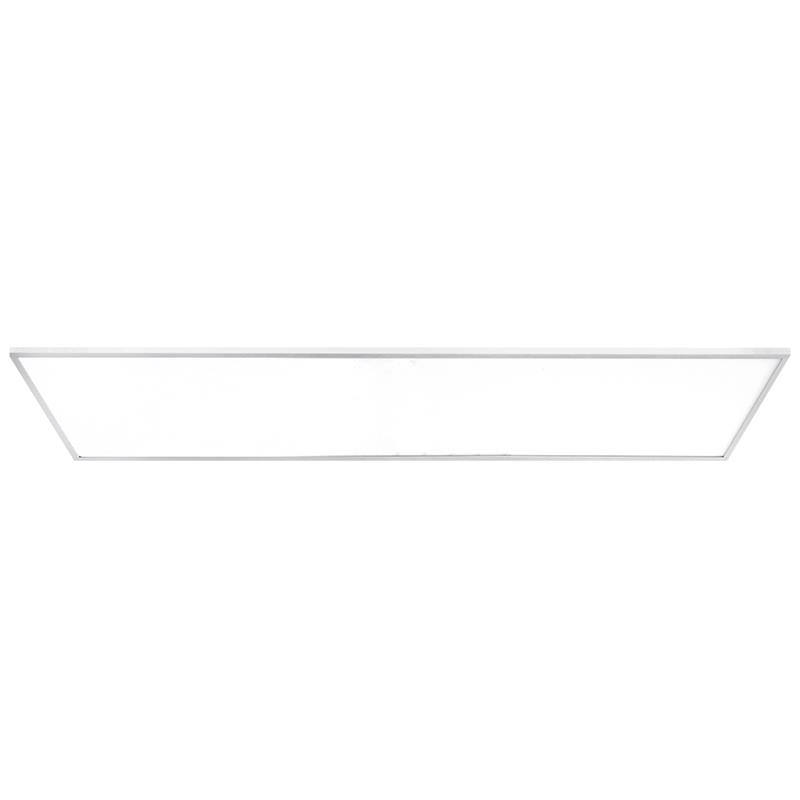

E1260™ 1200 x 600mm 50W LED Light Panel

The E1260™ has been upgraded to produce 110lm/W for outstanding energy savings. The light guide board and diffuser have been engineered to ensure maximum light output and complete uniformity. Suitable for a wide range of applications including office, education and commercial spaces.

Spec Sheet


  • Edge-lit design and optical pattern light guide engineered for even light distribution
  • Suitable for installation in 15 & 24mm T-bar ceilings
  • SDCM <5 providing consistent light colour quality
  • UGR 19 (Unified Glare Rating) - suitable for use in offices
  • Flicker free driver - Power Factor >0.9
  • Life not affected by frequent switching e.g. when used with occupancy controls
  • 1-10V dimmable, DALI and emergency versions available
  • Surface mount box and adjustable suspension kit available
  • Pre-wired with 1.2m flex and 2-pin plug
  • 1.5kV surge protection
  • 3 year warranty

Width (mm)
595
DALI
No
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP20
Height (mm)
10
Length (mm)
1195
Lifetime (Hours)
30000
Dimmable
No
Positional Adjustment
Fixed

Download

Instruction Leaflet
