Helius™ Plus PIR
Energy
Spec Sheet

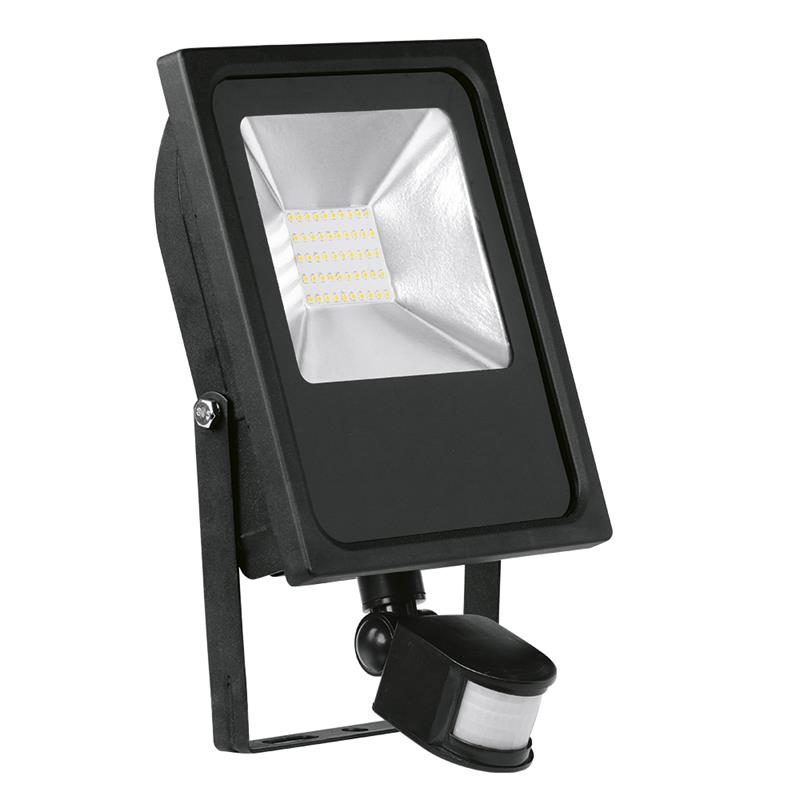

Helius+PIR™ 50W Adjustable IP65 LED Floodlight with PIR Sensor



Same design but improved efficacy, the Helius+PIR™ floodlights have been upgraded to 100lm/W. Featuring SMD LED chips these floodlights are perfect for both residential and commercial IP65 applications. Their slim profile and clean black finish make them as unobtrusive as possible. Available in 10W, 30W and 50W versions with black housing.

SKU Code Wattage Lumens Colour Temperature
EN-FL50PIRB/40 50 5000 4000
Downloads
All IES/LDT Files
EN-FL50PIRB/40
Features & Benefits
IP65 rated LED floodlight rated with slim design
PIR detection distance up to 6m, detection range 120° for 10W, 180° for 30W & 50W
Durable high quality paint minimises impact of corrosion
Tempered glass provides excellent protection
Die-cast aluminium housing
Pre-wired with 800mm of cable
1.5kV surge protection
3 year warranty
Read More
Technical Information
Bracket Width (mm)
231
Lifetime (Hours)
25000
Power Factor
0.9
IP Rating
IP65
Length (mm)
300
Width (mm)
195
Height (mm)
300
Bracket Length (mm)
195
  • Non-Replaceable LED
    Non-Replaceable LED
  • Earth
    Earth
  • IP65
    IP65
  • LED Light Source
    LED Light Source
  • CE
    CE
  • RoHS
    RoHS
  • SAA
    SAA
  • 240V
    240V
