Helius™ Plus PIR
Spec Sheet

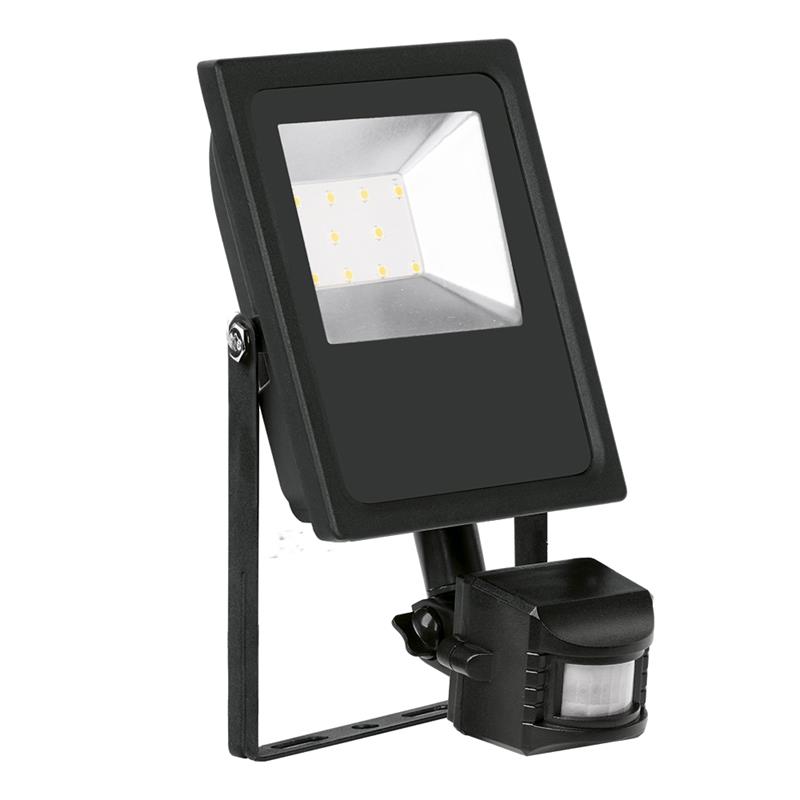

Helius+PIR™ 10W Adjustable IP65 LED Floodlight with PIR Sensor



Same design but improved efficacy, the Helius+PIR™ floodlights have been upgraded to 100lm/W. Featuring SMD LED chips these floodlights are perfect for both residential and commercial IP65 applications. Their slim profile and clean black finish make them as unobtrusive as possible. Available in 10W, 30W and 50W versions with black housing.

SKU Code Wattage Lumens Colour Temperature
EN-FL10PIRB/40 10 1000 4000
Downloads
All IES/LDT Files
EN-FL10PIRB/40
Features & Benefits
IP65 rated LED floodlight rated with slim design
PIR detection distance up to 6m, detection range 120° for 10W, 180° for 30W & 50W
Durable high quality paint minimises impact of corrosion
Tempered glass provides excellent protection
Die-cast aluminium housing
Pre-wired with 800mm of cable
1.5kV surge protection
3 year warranty
Read More
Technical Information
Bracket Width (mm)
126
Lifetime (Hours)
25000
Power Factor
0.9
IP Rating
IP65
Length (mm)
200
Width (mm)
115
Height (mm)
200
Bracket Length (mm)
150
  • Non-Replaceable LED
    Non-Replaceable LED
  • RoHS
    RoHS
  • LED Light Source
    LED Light Source
  • CE
    CE
  • Earth
    Earth
  • SAA
    SAA
  • IP65
    IP65
  • 240V
    240V
