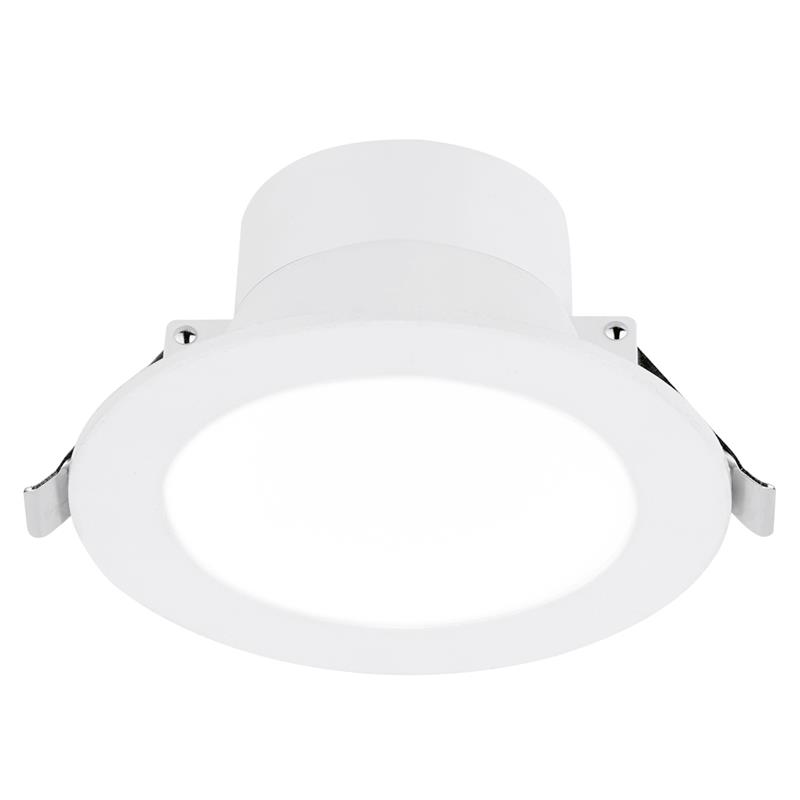

Eco90™ 8W Dimmable LED Downlight

The Eco90™ fixed dimmable LED downlight is simple yet powerful with an efficacy of up to 103lm/W. The frosted diffuser guarantees low glare and uniform lighting. Designed for general lighting applications such as offices, retail and hospitality.

Spec Sheet


  • Energy efficient dimmable LED downlight - up to 103lm/W
  • Wide 100° beam angle
  • Pre-wired with 1.2m flex and 2-pin plug
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
EN-DLE90AK/30 8 750 3000 80
EN-DLE90AK/40 8 820 4000 80

DALI
No
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP54
Cutout Diameter Min. (mm)
90
Cutout Diameter Max. (mm)
100
Recess Depth (mm)
83
Height (mm)
58
Length (mm)
58
Lifetime (Hours)
40000
Dimmable
Yes
Positional Adjustment
Fixed
Overall Diameter (mm)
115
