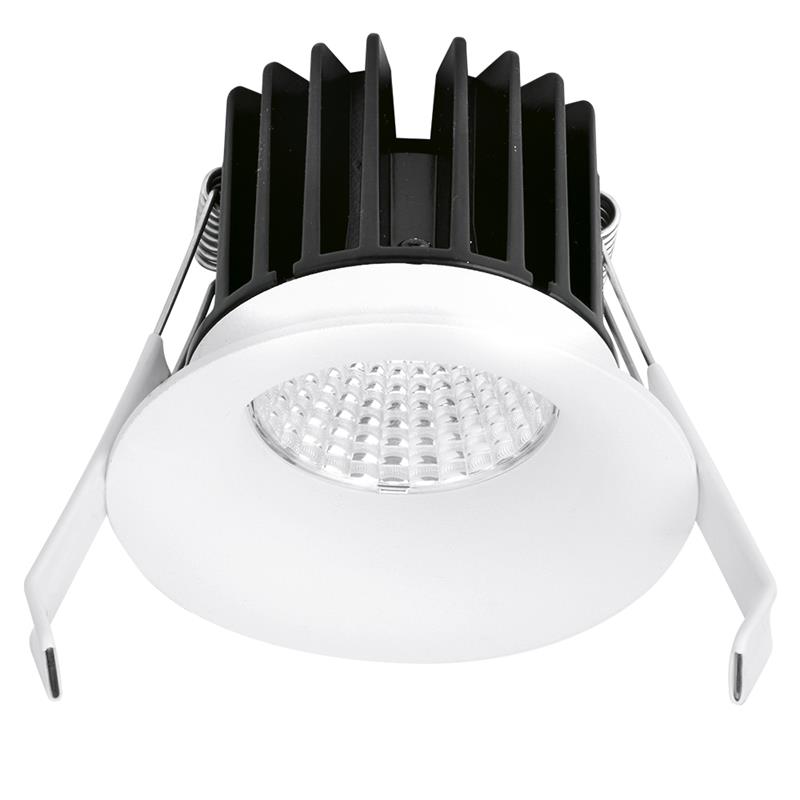

CurveE™ 10W Baffled Dimmable IP44 LED Downlight



Introducing the stylish CurveE™ LED downlight range, this low glare downlight has a sleek baffled design with the light source recessed back to reduce glare. Available in matt white these downlights are an ideal non-fire rated solution for hospitality and residential applications in areas where fire rating is not required.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-DLB101DAK/30 10 920 3000 Yes
EN-DLB101DAK/40 10 970 4000 Yes
Downloads
All IES/LDT Files
EN-DLB101DAK/30
EN-DLB101DAK/40
Features & Benefits
Baffled design for low glare - LED recessed by 10mm or 20mm
Plug and play remote driver for easy installation
IP44 rated - ideal for hospitality and residential applications such as corridors, living areas, bedrooms, dining rooms and zone 2 of bathrooms
UGR19 (Unified Glare Rating)
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
25000
Power Factor
0.90
IP Rating
IP44
Overall Diameter (mm)
80
Height (mm)
60
Recess Depth (mm)
75
Cutout Diameter Min. (mm)
70
Cutout Diameter Max. (mm)
75
DALI
No
  • SAA
    SAA
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • IP54
    IP54
