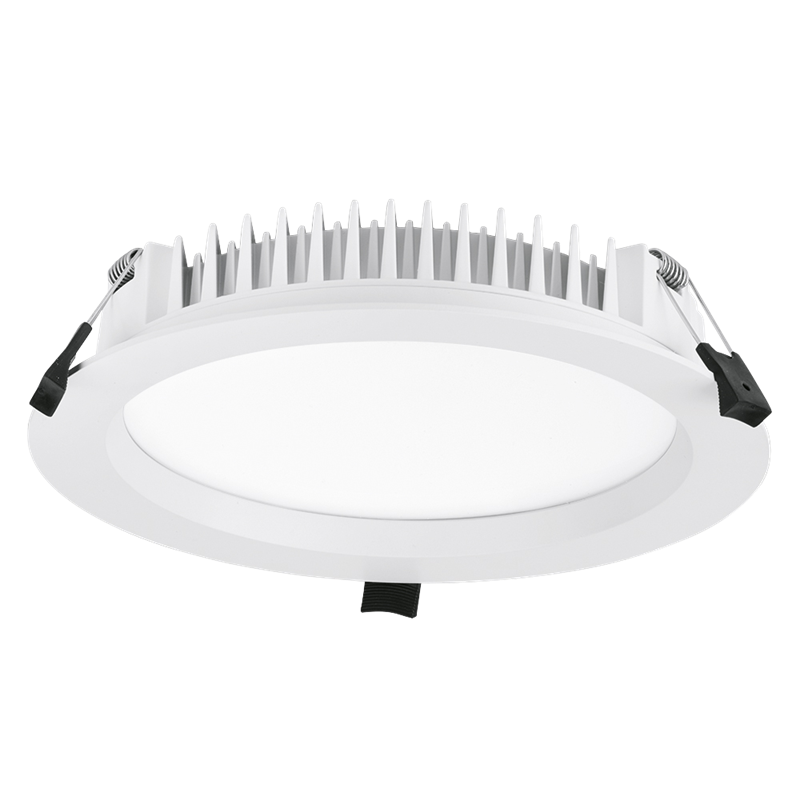

Lumi-Fit™ 35W High Performance Dimmable LED Downlight

The new range of dimmable Lumi-Fit™ commercial downlights deliver up to an impressive 106lm/W. Supplied with remote driver and fitted with an acrylic diffuser to reduce glare and for even light distribution. With multiple wattages and sizes on offer this range meets the needs for countless new commercial applications or an upgrade for compact fluorescent fittings in existing applications.

Spec Sheet


  • Low cost energy saving alternative to compact fluorescent fittings
  • Life not affected by frequent switching e.g. when used with occupancy controls
  • Plug and play remote driver for easy installation
  • DALI plug and play driver available to order
  • IP54 rated - suitable for use in commercial offices, educational and public toilets
  • Pre-wired with 1.2m flex and 2-pin plug
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
EN-DDLH835AK/40 35 3600 4000 80
EN-DDLH835AKDA/30 35 3100 3000 80
IES
EN-DDLH835AKDA/40 35 3600 4000 80

Input Voltage (Min)
200
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP54
Cutout Diameter Min. (mm)
200
Cutout Diameter Max. (mm)
210
Recess Depth (mm)
45
Lifetime (Hours)
40000
Dimmable
Yes
Positional Adjustment
Baffle
Overall Diameter (mm)
228
