Lumi-Fit™
Spec Sheet

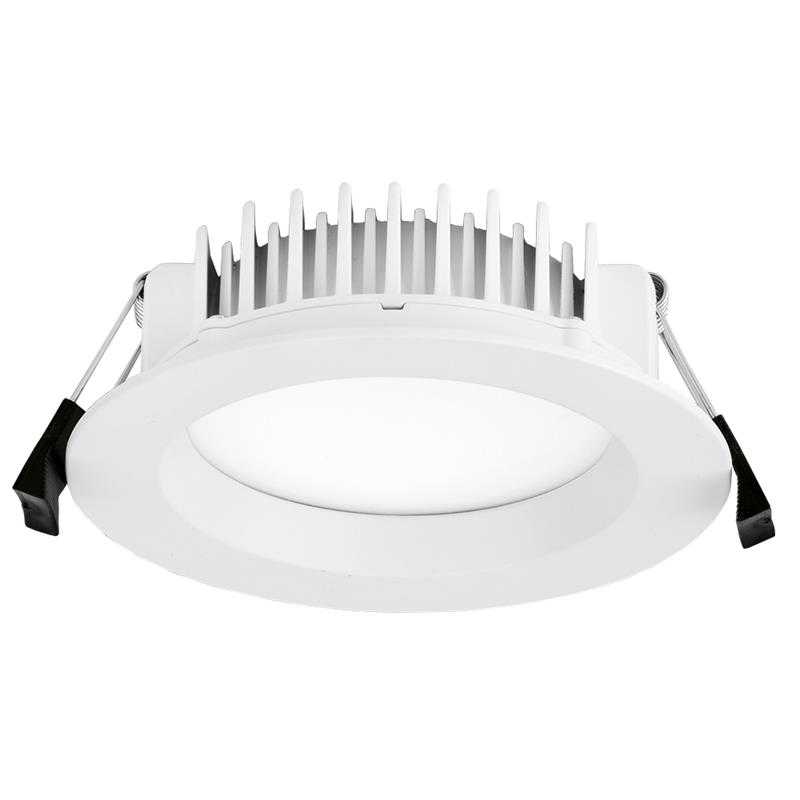

Lumi-Fit™ 13W High Performance Dimmable LED Downlight



The new range of dimmable Lumi-Fit™ commercial downlights deliver up to an impressive 106lm/W. Supplied with remote driver and fitted with an acrylic diffuser to reduce glare and for even light distribution. With multiple wattages and sizes on offer this range meets the needs for countless new commercial applications or an upgrade for compact fluorescent fittings in existing applications.

SKU Code Wattage Lumens Colour Temp (K) Ra
EN-DDLH413AK/40 13 1260 4000 80
EN-DDLH413AKDA/30 13 1100 3000 80
EN-DDLH413AKDA/40 13 1260 4000 80
DOWNLOADS
All Spec Sheets
All IES/LDT Files
EN-DDLH413AK/40
EN-DDLH413AKDA/30
EN-DDLH413AKDA/40
FEATURES & BENEFITS
Low cost energy saving alternative to compact fluorescent fittings
Life not affected by frequent switching e.g. when used with occupancy controls
Plug and play remote driver for easy installation
DALI plug and play driver available to order
IP54 rated - suitable for use in commercial offices, educational and public toilets
Pre-wired with 1.2m flex and 2-pin plug
1.5kV surge protection
3 year warranty
TECHNICAL INFORMATION
Input Voltage (Min)
200
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP54
Cutout Diameter Min. (mm)
120
Cutout Diameter Max. (mm)
130
Recess Depth (mm)
70
Height (mm)
45
Lifetime (Hours)
40000
Dimmable
Yes
Positional Adjustment
Baffle
Overall Diameter (mm)
145
  • IP54
    IP54
  • SAA
    SAA
  • IC4
    IC4
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
