Lumi-Fit™
Spec Sheet

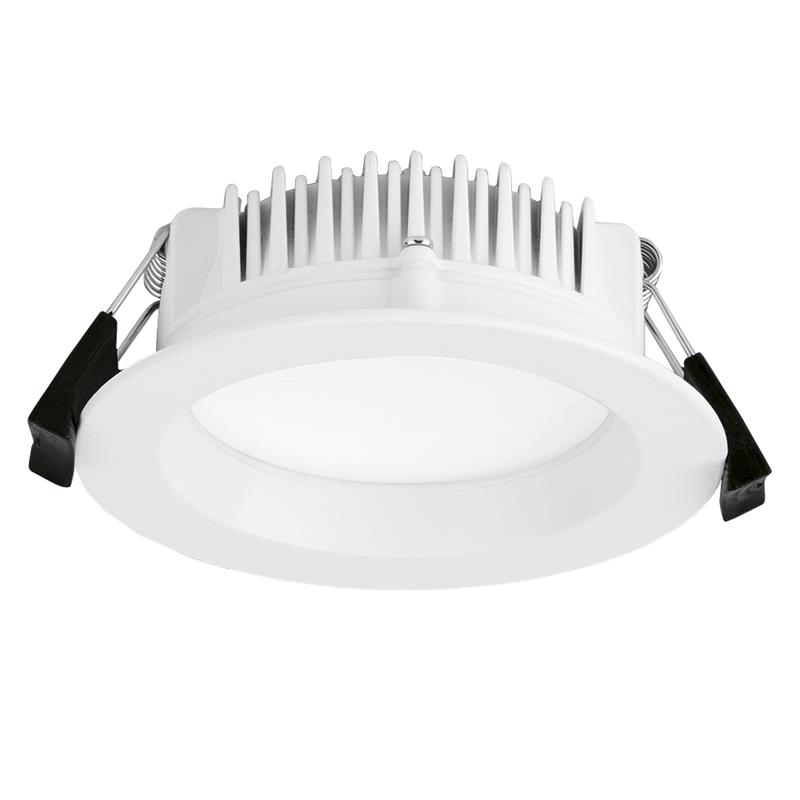

Lumi-Fit™ 12W High Performance Dimmable LED Downlight



The new range of dimmable Lumi-Fit™ commercial downlights deliver up to an impressive 106lm/W. Supplied with remote driver and fitted with an acrylic diffuser to reduce glare and for even light distribution. With multiple wattages and sizes on offer this range meets the needs for countless new commercial applications or an upgrade for compact fluorescent fittings in existing applications.

SKU Code Wattage Lumens Colour Temperature
EN-DDLH312AK/40 12 1200 4000
EN-DDLH312AKDA/30 12 1050 3000
EN-DDLH312AKDA/40 12 1200 4000
Features & Benefits
Low cost energy saving alternative to compact fluorescent fittings
Life not affected by frequent switching e.g. when used with occupancy controls
Plug and play remote driver for easy installation
DALI plug and play driver available to order
IP54 rated - suitable for use in commercial offices, educational and public toilets
Pre-wired with 1.2m flex and 2-pin plug
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.9
IP Rating
IP54
Overall Diameter (mm)
110
Height (mm)
38
Recess Depth (mm)
63
Cutout Diameter Min. (mm)
90
Cutout Diameter Max. (mm)
100
  • SAA
    SAA
  • IC4
    IC4
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • IP54
    IP54
