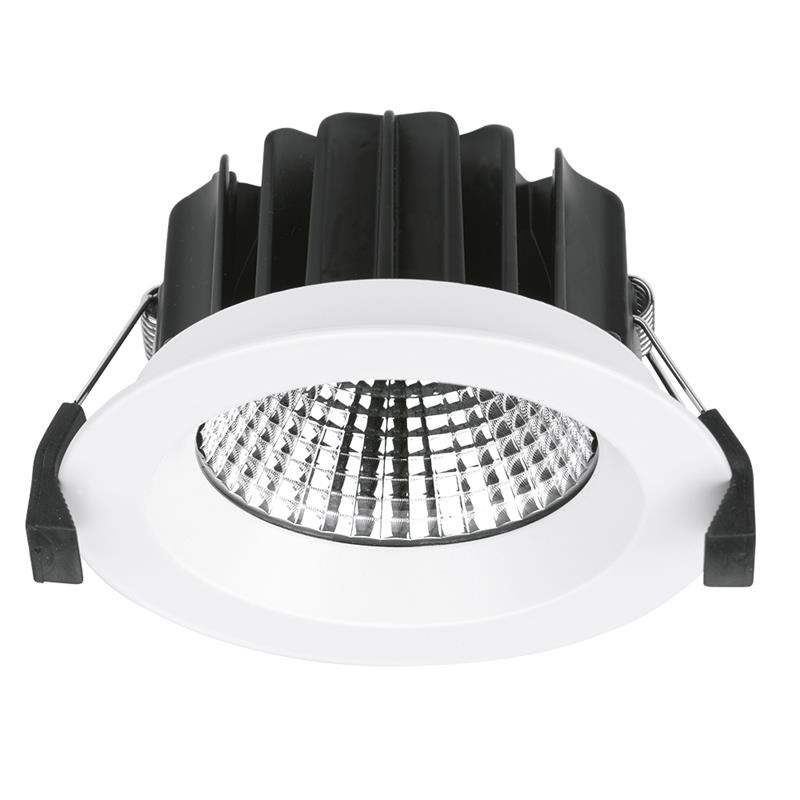

13W Dimmable LED Downlight



The ECan range of high power COB LED downlights provide up to 115lm/W. Featuring a sparkling multifaceted aluminium reflector designed for exceptional light control, they are available in three wattages and in two sizes ideal for a range of commercial applications.

SKU Code Wattage Lumens Colour Temperature
EN-DDL313AK/30 13 830 3000
EN-DDL313AK/40 13 880 4000
Downloads
All IES/LDT Files
EN-DDL313AK/30
EN-DDL313AK/40
Technical Information
Lifetime (Hours)
40000
Power Factor
0.9
IP Rating
IP20
Overall Diameter (mm)
110
Recess Depth (mm)
78
Cutout Diameter Min. (mm)
90
Cutout Diameter Max. (mm)
100
DALI
No
  • SAA
    SAA
  • Do Not Cover
    Do Not Cover
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
